Model Number:
ZLGJ-10
Compliance:
CE Certified
Minimum Order Quantity:
1
Screen:
LCD
Voltage:
108V-240V 50/60HZ
Power:
1100w
Warranty:
1 year
Dimension(L*W*H):
mm
Weight:
kg
Packaging Details:
Export wooden package
Delivery Time:
6-8 day

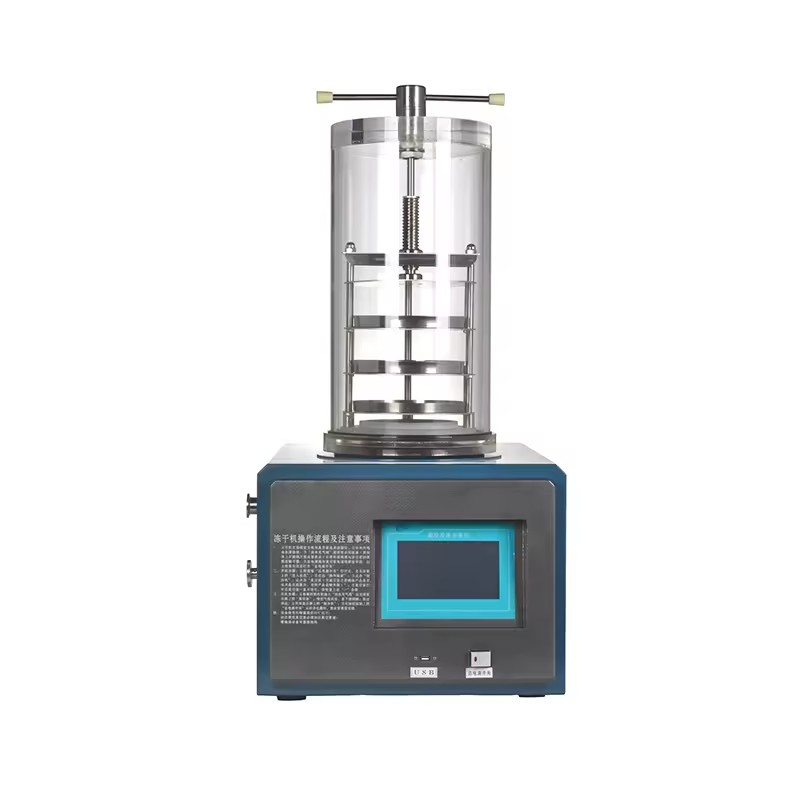

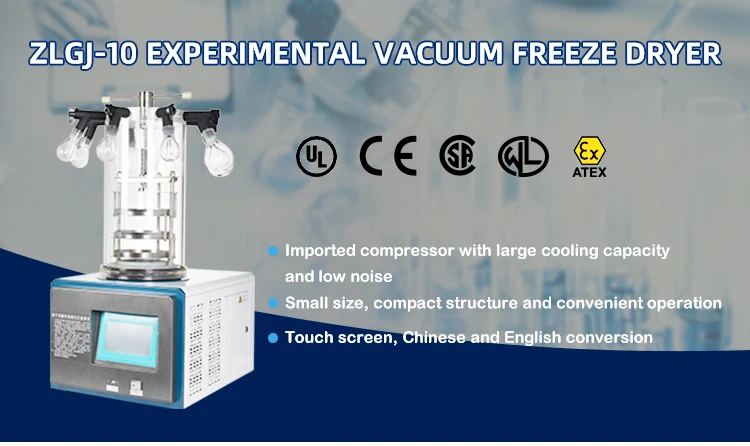

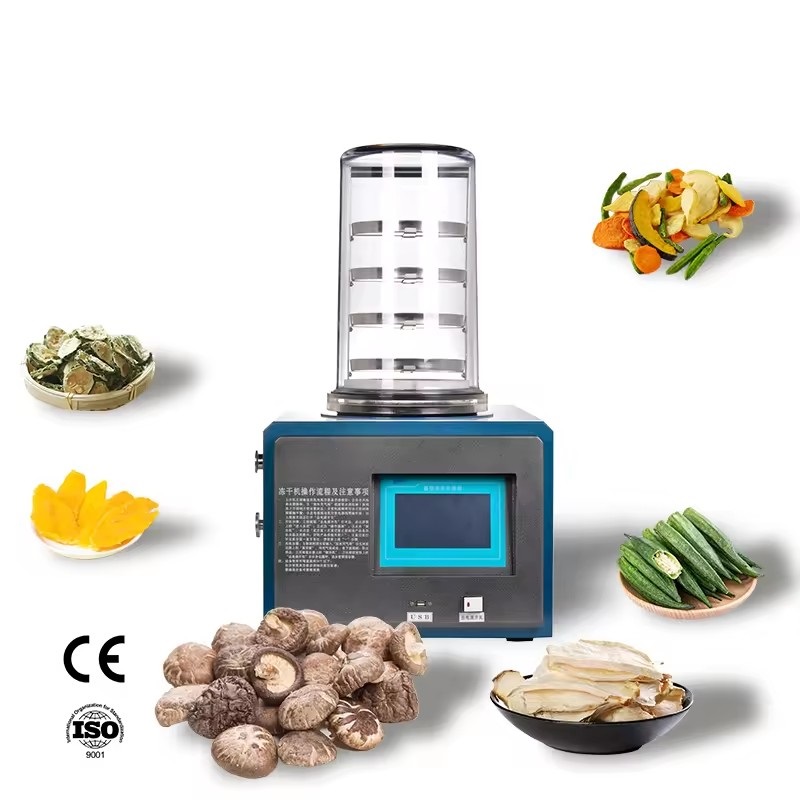

Experimental vacuum freeze dryer is widely used in biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.
Product Parameters

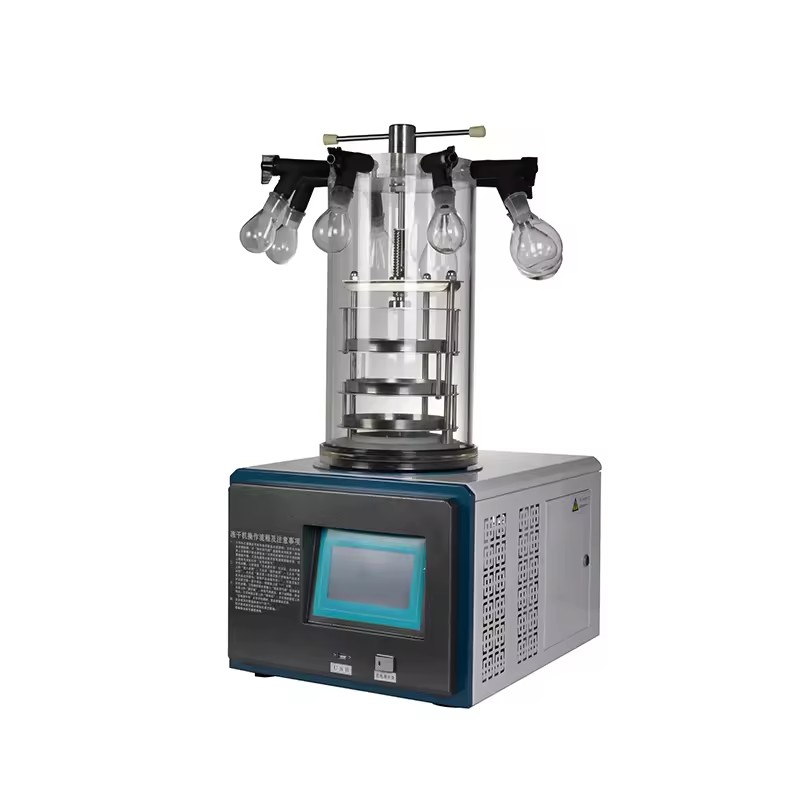

| Product Modle | ZLGJ-10(normal type) | ZLGJ-10(Multi-manifold type) | ZLGJ-10(Gland type) | ZLGJ-10(Manifold gland type) |
| Freeze-dried Area | 0.1 | 0.1 | 0.08 | 0.08 |
| Cold Trap Coil Temperature | ≤-55℃(no load),≤-80℃(no load) | |||
| Ultimate Vacuum | ≤5Pa(no load) | |||
| pumping Rate | 2L/S | |||
| Water Capture Capacity | 3-4kg/24h | |||
| Cooling Method | air cooling | |||
| Defrost Mode | natural frost | |||
| Host Weight | 48kg | |||
| Host Dimension | 520x600x400 | |||
| Total Power | 950W | |||
| Material Tray | 4pcs,Disc diameter: φ180mm, disc spacing: 70mm | 3pcs,Disc diameter: φ180mm, gap between glands: 70mm | ||
| Eggplant Flask | / | 8pcs,100ml,150ml,250ml,500ml two each | / | 8pcs,100ml,150ml,250ml,500ml two each |
| Vial | vialφ12:920;vialφ16:480; vialφ22:260; | vialφ12:560;vialφ16:285; vialφ22:165; | ||
| Working Ambient Temperature | 10℃~30℃ | |||
| Relative Humidity | ≤70% | |||
| Voltage | single phase 220V±10% 50HZ | |||
| Working Environment | The working environment should be free from conductive dust, explosive, corrosive gases and strong electromagnetic field interference | |||
| Transport Storage Ambient Temperature | 50℃~-40℃ | |||

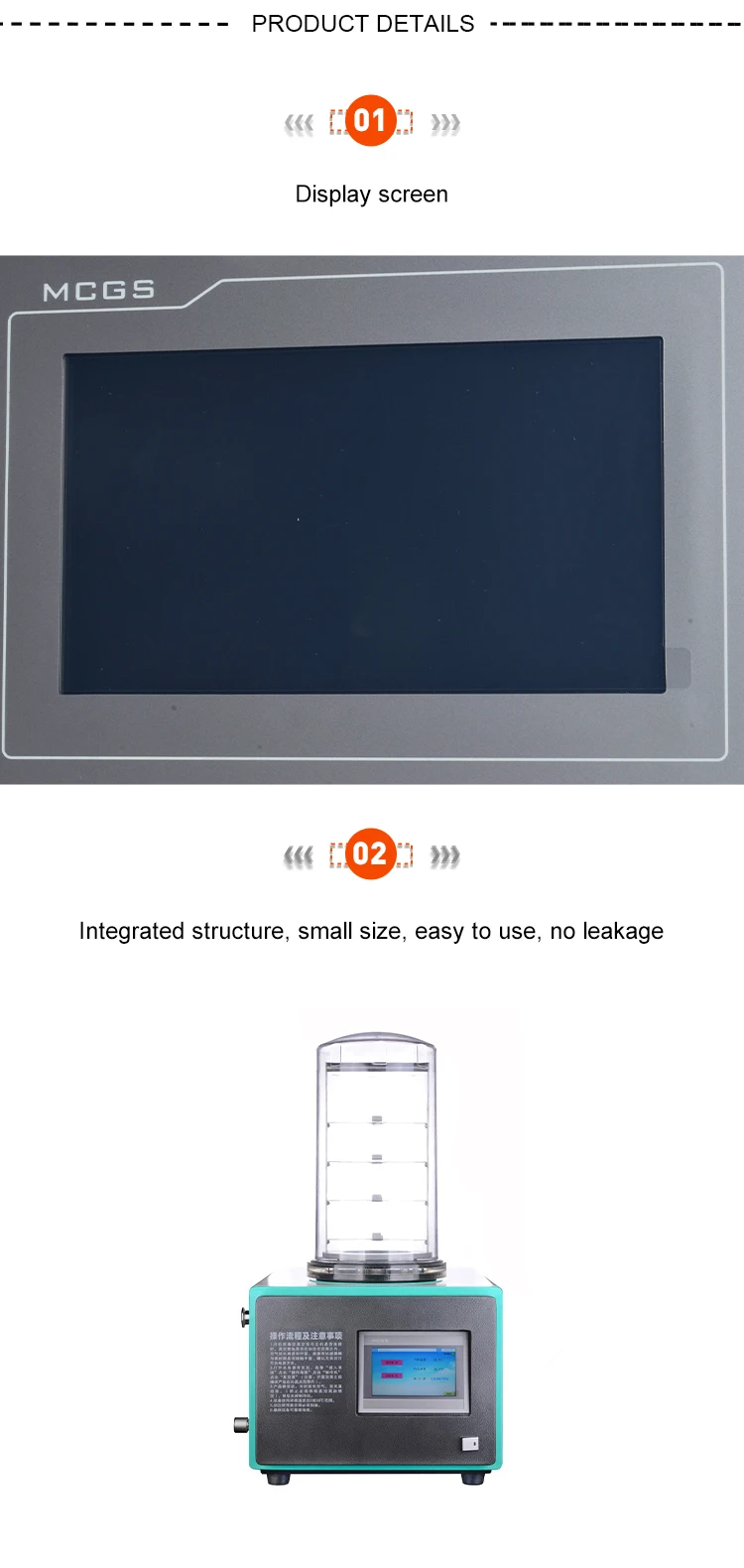

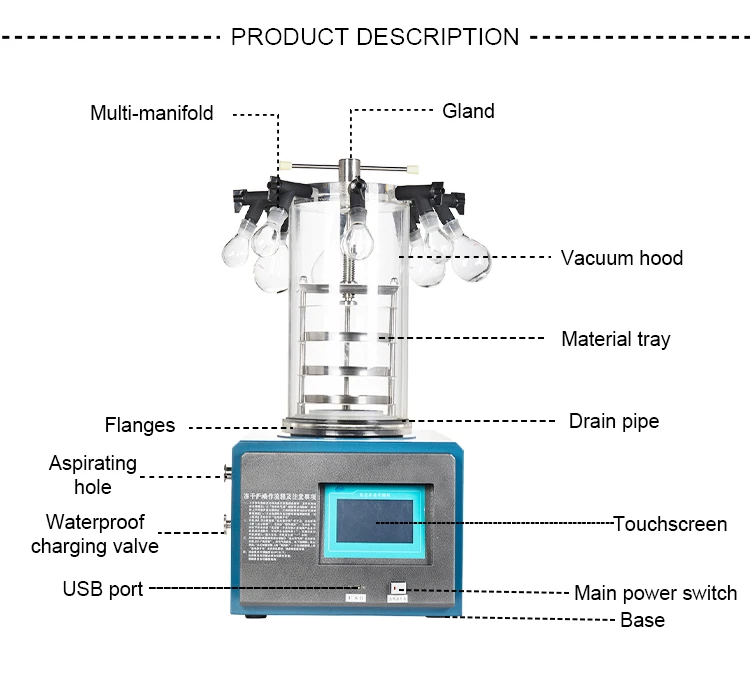

Product Details
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
Compact lab testing equipment for startup R&D,It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
