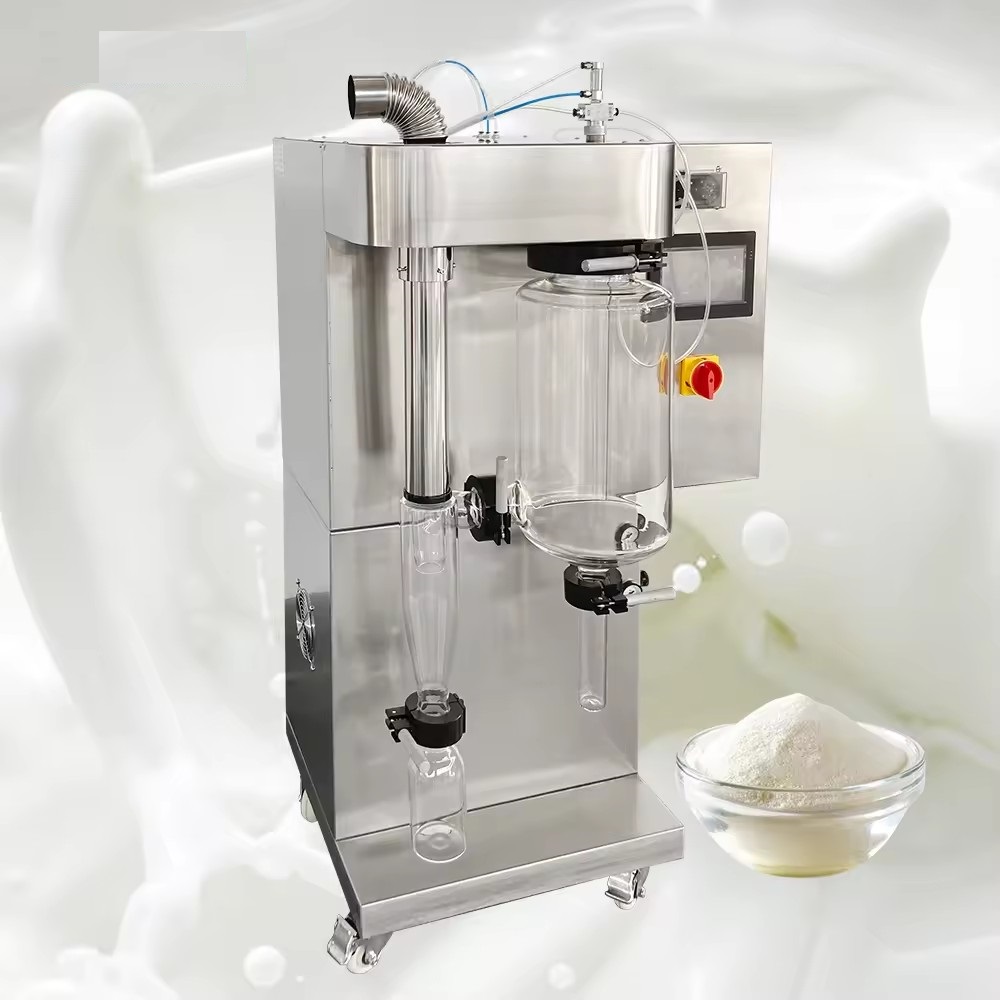

This is a lab‑scale R&D spray dryer for small‑batch trials, not for mass continuous production. This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.
SYN‑2L laboratory spray dryer for pharmacy,food,ceramic & biotech R&D. Max 2000ml/h feeding,automatic nozzle cleaning,±1℃ precise temperature control. Download datasheet or send inquiry

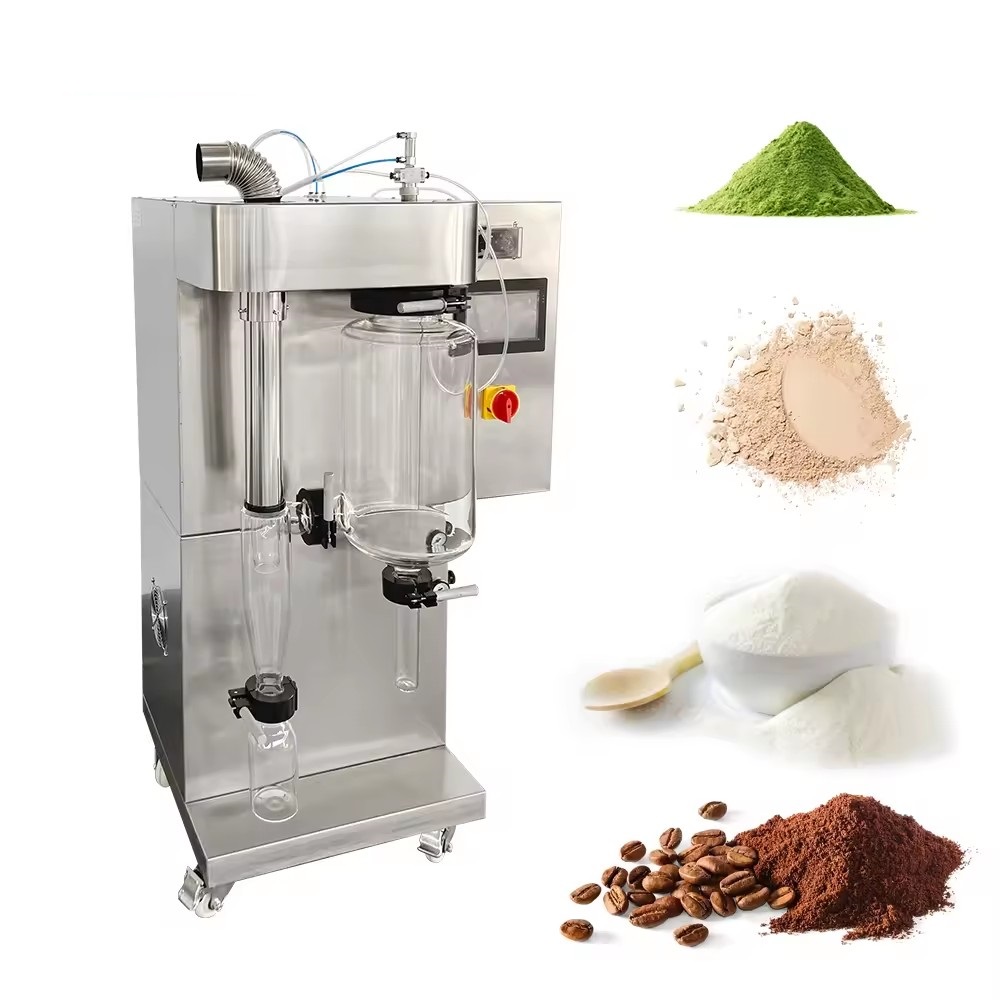

It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable extracts, pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Application Fields :University lab / Pharmaceutical R&D / Food Formulation / Advanced Material & Ceramic Research, and so on.
Model | SYN-2L |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30C -280C |
Temperature range of outlet air | 40C -120C |
Precision of temperature | ± 1 C |
dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | 2 liquid nozzles with standard 1.0mm jet Options of 0.5/0.7/1.5/2.0/2.5mm |
Spray direction | Downwards co-current |
Power | 3.5KW 108V-240V |
Dimensions | 650*500*1550 ( mm ) L * W* H |

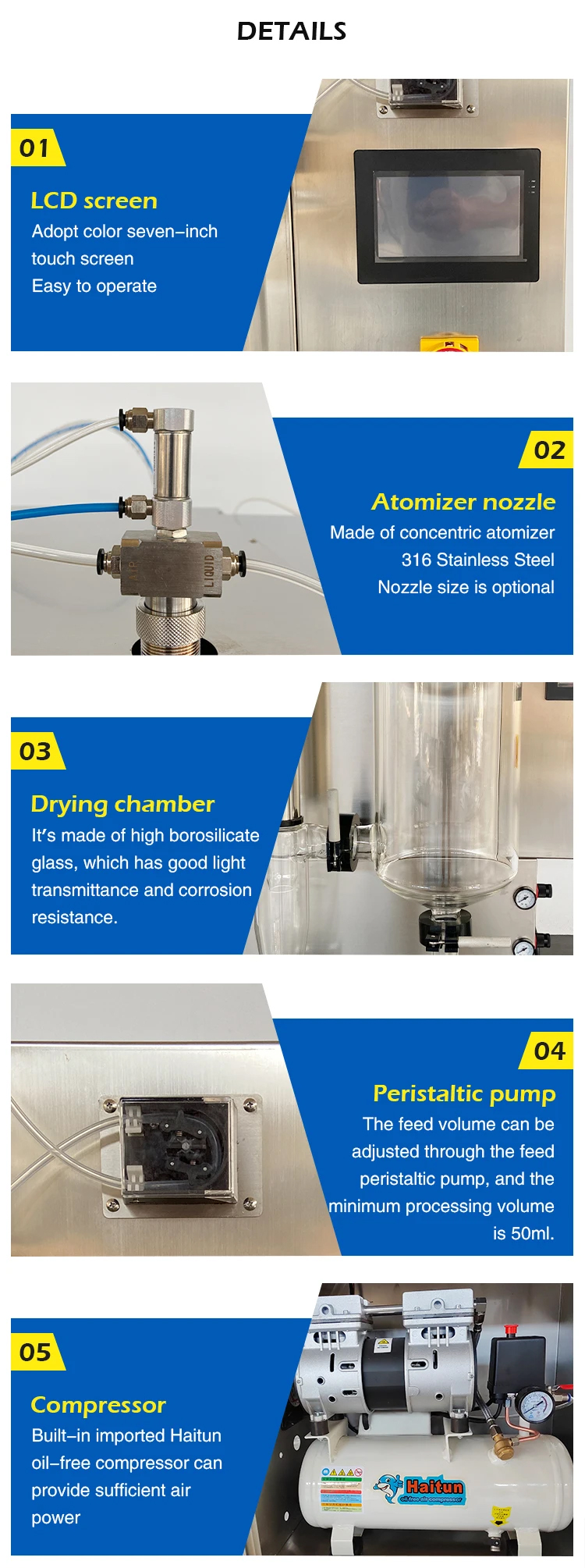

1. High-tech nozzle,high efficiency.

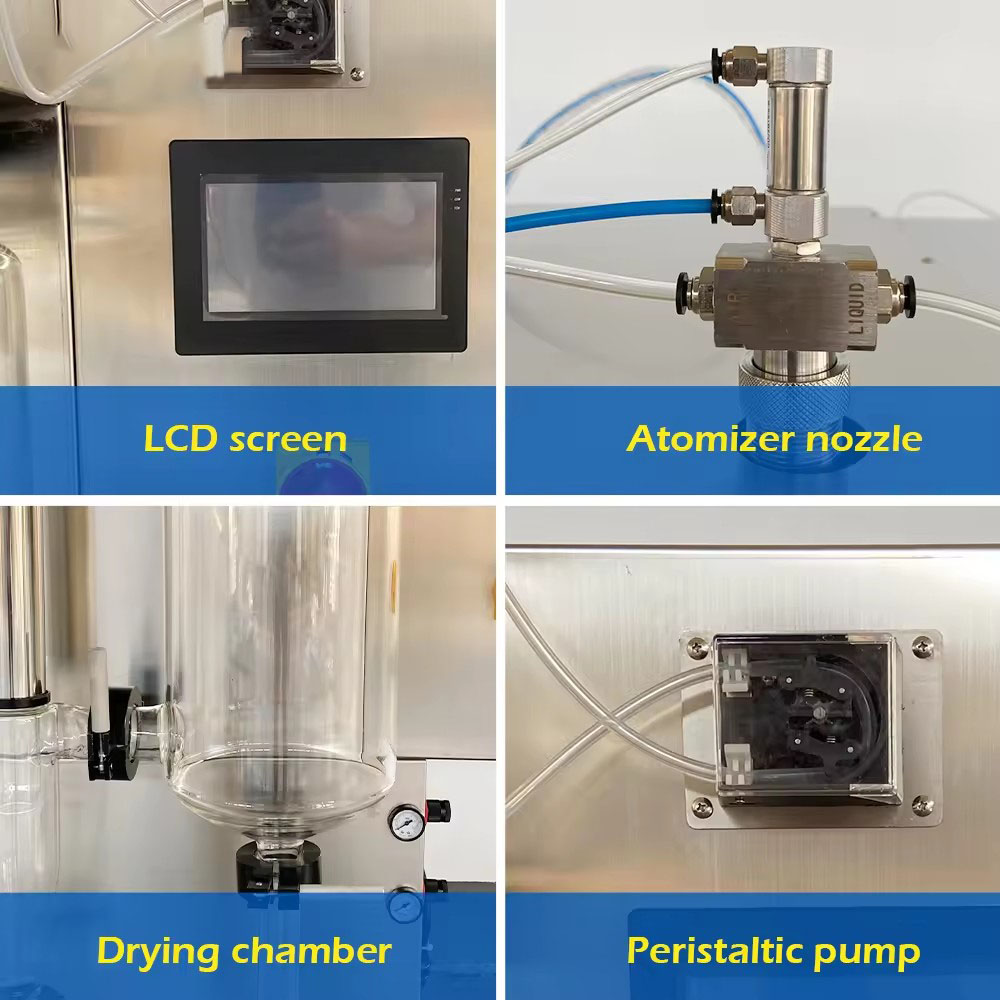

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Built‑in automatic nozzle‑cleaning needle. Solves frequent nozzle‑blocking issues for sticky samples; avoid stopping experiments for manual nozzle disassembly & cleaning.
4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.
5. Material won’t get polluted due to the special material of the atomizing.drying and collection system.
6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.
7. PID constant temperature control,precise temperature control,precision is ±1℃.
8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.
9. Uniform product powder,above 95% powder keep within same size range.

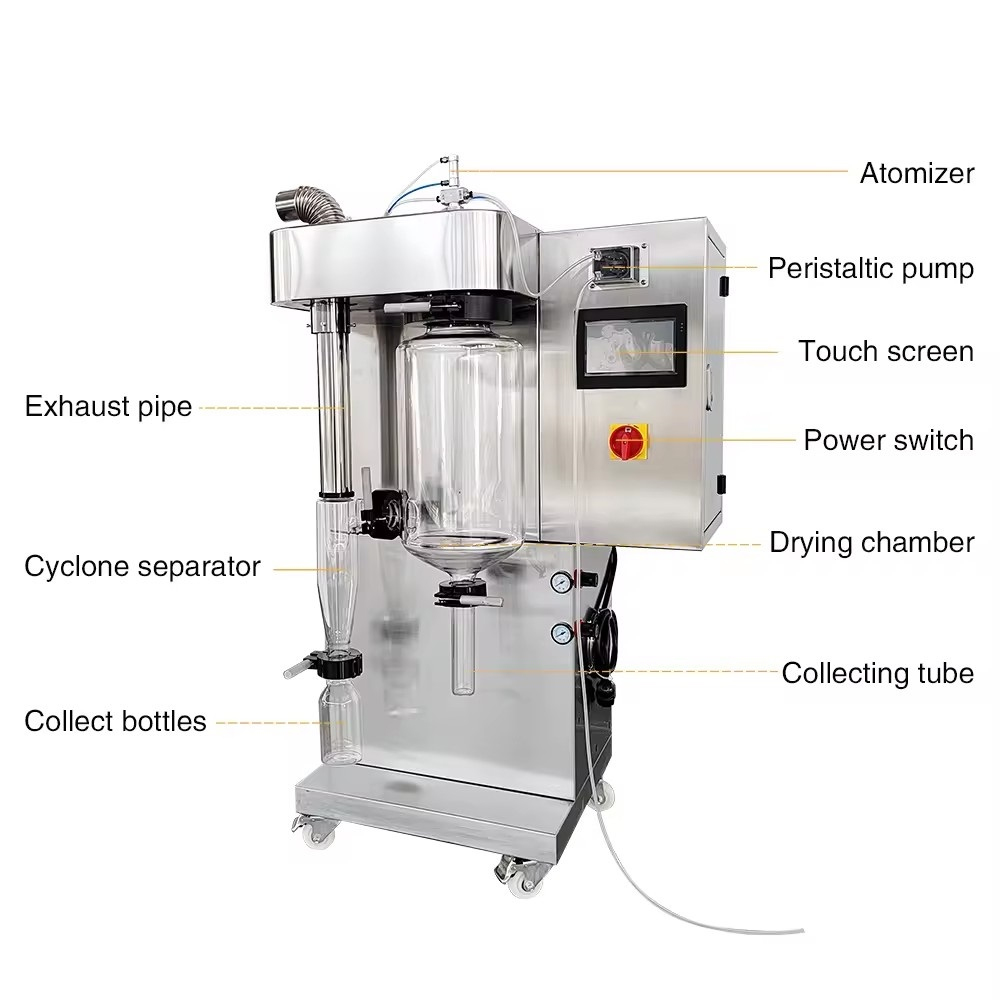

spray dryer main body
Peristaltic pump
Cyclone separator
Powder collection vessel
Power supply cable
User operation manual
Various nozzle sizes for different sample properties:
0.5 mm, 0.7 mm, 1.5 mm, 2.0 mm, 2.5 mm spray nozzles
Other custom‑made parts are available according to your experimental requirements.
CE certified for laboratory‑grade equipment.
Product‑contact wetted parts: Stainless steel SUS304.
Material test report can be provided upon request.
MOQ: 1 unit
Production lead time: 15‑25 working days after deposit received
Gross weight: Please contact us for exact gross weight
Packing solution: Standard export plywood wooden case for sea & air shipment
We support partial customization to match your laboratory experimental requirements: ‑ Input working voltage ‑ Additional spare spray nozzles ‑ Modification of powder collection system ‑ Other lab‑oriented custom requirements, please discuss with our sales team.
‑ Warranty: 1‑year warranty for the whole unit (excluding wearing spare parts). ‑ Spare parts supply: Long‑term supply of consumable & wearing components at factory price. ‑ Technical support: Remote online guidance, video training and troubleshooting. ‑ On‑site service is not included; please contact us for further assistance.
Q1: What is the minimum sample feeding volume?A: Minimum sample feeding volume is 30 ml. Sample properties will affect actual experimental performance.
Q2: What kinds of samples are suitable for this lab spray dryer?A: It is suitable for water‑based liquid samples. High‑viscosity, high‑salt, organic‑solvent and corrosive samples are not recommended. Please consult our engineers for your specific material.
Q3: What is the powder recovery rate?A: Typical powder recovery ranges from 60%‑85%. Recovery result varies with sample composition, inlet temperature and operating parameters.
Q4: Which parts are wearing components that need regular replacement?A: Main wearing parts include spray nozzle, peristaltic pump tube and filter elements. Spare consumables can be purchased separately.
