Chemistry Lab Equipment Hot Plate Magnetic Stirrer Mixer Stirring Max Hotplate Heating Magnetic Stirrer
chemistry lab equipment hot plate magnetic stirrer Mixer Stirring Max Hotplate heating magnetic stir
Product name: V shape dry powder mixer machine
Material Processed： Plastics, Chemicals, Food
Weight (KG): 180 KG
Condition: New
Place of Origin : China
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Chemicals industry, Ceramic industry, Food industry
Video outgoing-inspection: Provided
Dimension(L*W*H) : 1560*705*1500
Volume: 2L-300L
Voltage: 220V/380V/as required
Overview
Application Scenario

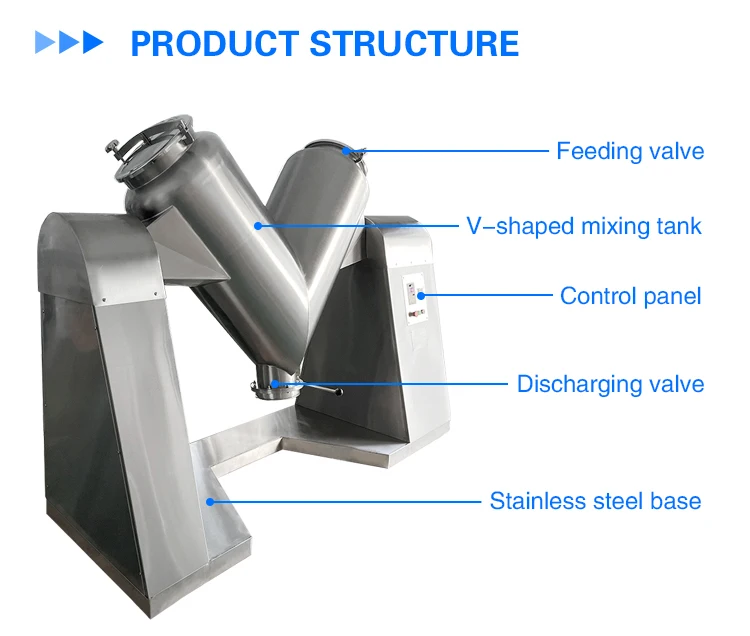

Product structure

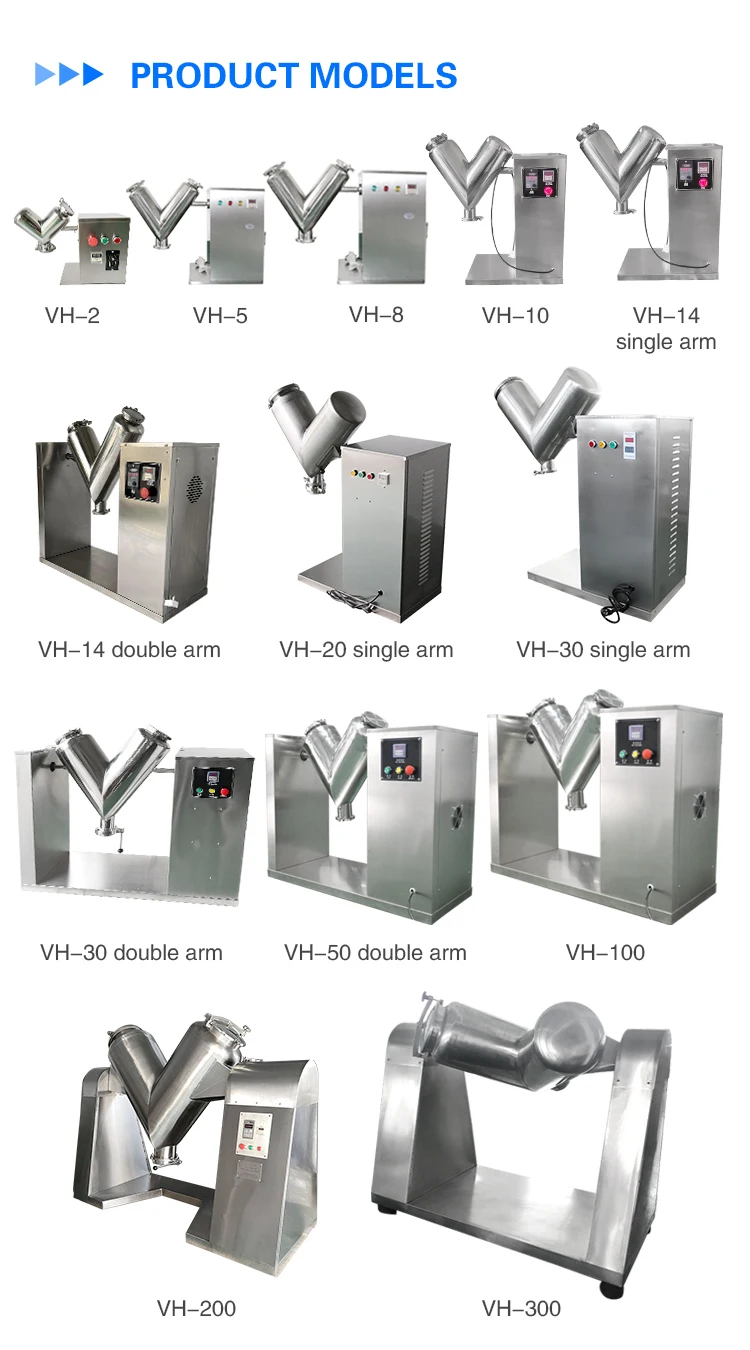

Product Parameters
Model | Total Volume(L) | Loading capacity (kg) | Rotation Speed(r/min) | Dimension (mm) | (kw) | Weight (kg) |
VH-2 | 2 | 0.6 | 24 | 450*270*450 | 0.25 | 13 |
VH-5 | 5 | 2 | 25 | 680*275*475 | 0.55 | 65 |
VH-6 | 6 | 3 | 24 | 650*305*720 | 0.37 | 35 |
VH-8 | 8 | 5 | 35 | 750*370*550 | 0.55 | 65 |
VH-10 | 10 | 5 | 24 | 710*325*700 | 0.37 | 45 |
VH-14 single arm | 14 | 3-4 | 28 | 820*365*840 | 0.55 | 50 |
VH-14 double arm | 14 | 3-4 | 28 | 930*375*920 | 0.55 | 72 |
VH-20 single arm | 20 | 8-10 | 20 | 800*600*1000 | 0.75 | 120 |
VH-30 single arm | 30 | 8-10 | 20 | 800*600*1000 | 0.75 | 120 |
VH-30 double arm | 30 | 8-10 | 23 | 1120*405*1050 | 0.75 | 160 |
VH-50 | 50 | 15-20 | 20 | 1300*460*1200 | 1.1 | 165 |
VH-100 | 100 | 34-40 | 18 | 1560*705*1500 | 1.5 | 180 |
VH-200 | 200 | 60-80 | 12 | 2300*800*1900 | 1.1 | 800 |
VH-300 | 300 | 90-100 | 10 | 2350*800*1800 | 1.5 | 900 |
Product Advantages

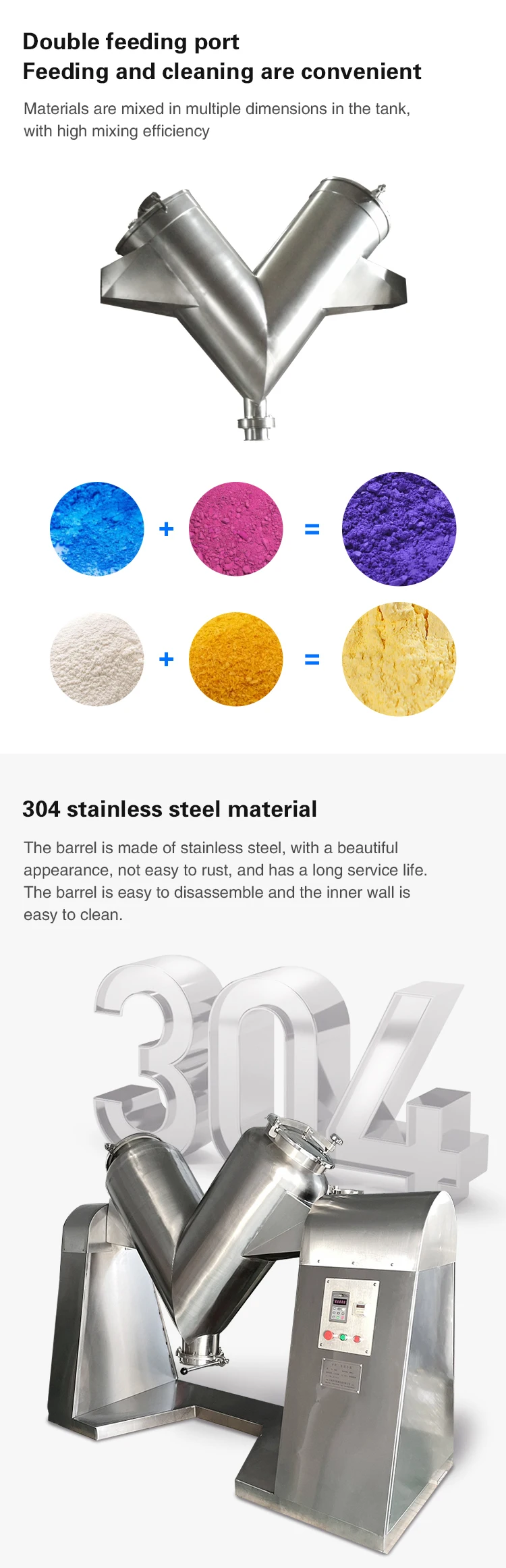

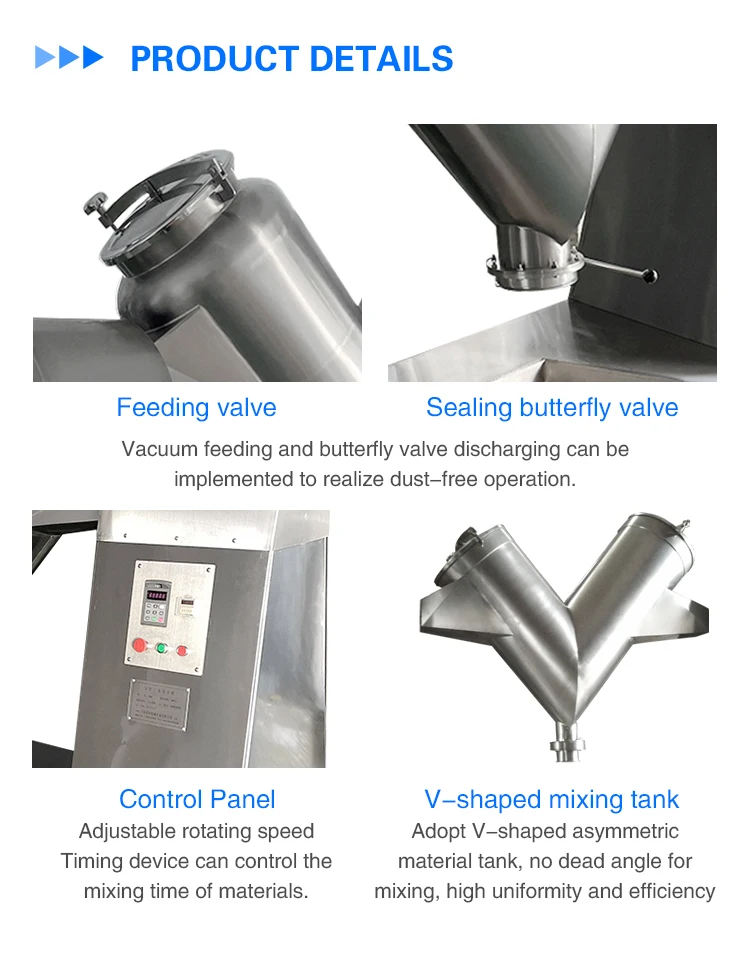

Product Details
Product Display
Packaging & Shipping
chemistry lab equipment hot plate magnetic stirrer Mixer Stirring Max Hotplate heating magnetic stir
What are the equipment use for mixing of powder?V-Type MixersThese have a V-shaped container that causes the powder to circulate and tumble when rotating, achieving mixing.Drum MixersCylindrical containers rotate around a central axis, causing the powder inside to tumble and mix.Ribbon MixersHorizontal troughs with spiral ribbon mixers move the powder radially and axially, achieving mixing.Double Cone MixersTwo cone-shaped ends are connected by a cylindrical section, allowing the powder to mix as the apparatus rotates.Fluidized Bed MixersPowder is made fluid-like by air passing through a bed layer, facilitating mixing.Planetary MixersMixing blades rotate around multiple axes within a container to achieve uniform mixing.High-Shear MixersHigh shear forces are created by rotating blades or a rotor-stator configuration to ensure thorough mixing.Drum MixersPowder is mixed by rotating drums.
Double arm Powder MixerThe double-arm mixer is an industrial equipment primarily used for mixing, blending, grinding, and processing various substances, including liquids, powders, slurries, and high-viscosity materials. It finds wide applications across industries such as chemical, pharmaceutical, food processing, cosmetics, and coatings. Featuring two mixing arms, these devices facilitate the thorough blending of ingredients within a sealed vessel. Their design and operation enable effective homogenization of diverse components to meet specific production requirements.
Single Arm Powder Mixer are commonly used in various industries to mix dry powders or granules evenly. They feature a V-shaped chamber where powders tumble and mix as the blender rotates. This design encourages powders to converge towards the center, ensuring effective blending. Operators load materials through a top opening and discharge the blended powder through a bottom outlet. Adjustments can be made to blending time and rotation speed for desired consistency. V-Blenders find applications in pharmaceuticals, food processing, chemicals, and cosmetics for tasks like tablet formulation, food ingredient mixing, cosmetic powder homogenization, and chemical blending.
Products Descriptionencan 8LUnmanned Mini Planetary Ball Mill with Corundum Jars and Aluminum Ballsall mill jar volume0.05L-5L/pc, totally 0.2L-100LFeeding particle sizesoft ≤10mm, other material ≤3
Laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
SYNCERAY Double arm Powder MixerThe double-arm mixer is an industrial equipment primarily used for mixing, blending, grinding, and processing various substances, including liquids, powders, slurries, and high-viscosity materials. It finds wide applications across industries such as chemical, pharmaceutical, food processing, cosmetics, and coatings. Featuring two mixing arms, these devices facilitate the thorough blending of ingredients within a sealed vessel. Their design and operation enable effective homogenization of diverse components to meet specific production requirements.
What are the SYNCERAY equipment use for mixing of powder?V-Type Mixers, These have V-shaped container that causes the powder to circulate and tumble when rotating, achieving mixing.Drum MixersCylindrical containers rotate around a central axis, causing the powder inside to tumble and mix.Ribbon MixersHorizontal troughs with spiral ribbon mixers move the powder radially and axially, achieving mixing.Double Cone Mixers Two cone-shaped ends are connected by a cylindrical section, allowing the powder to mix as the apparatus rotates. Fluidized Bed Mixers Powder is made fluid-like by air passing through a bed layer, facilitating mixing.Planetary Mixers Mixing blades rotate around multiple axes within a container to achieve uniform mixing.High-Shear Mixers High shear forces are created by rotating blades or a rotor-stator configuration to ensure thorough mixing.Drum Mixers Powder is mixed by rotating drums.
SYNCERAY Single Arm Powder Mixer are commonly used in various industries to mix dry powders or granules evenly. They feature a V-shaped chamber where powders tumble and mix as the blender rotates. This design encourages powders to converge towards the center, ensuring effective blending. Operators load materials through a top opening and discharge the blended powder through a bottom outlet. Adjustments can be made to blending time and rotation speed for desired consistency. V-Blenders find applications in pharmaceuticals, food processing, chemicals, and cosmetics for tasks like tablet formulation, food ingredient mixing, cosmetic powder homogenization, and chemical blending.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
Product Quality AssuranceThe rapid execution during the drying process reduces exposure time for heat-sensitive substances, aiding in maintaining product quality and the integrity of active ingredients.
Packing and Shipping-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;-Both neutral and customized packaging can be available.-We
Energy Efficiency and Environmental FriendlinessIncorporating advanced energy recovery techniques minimizes energy waste, aligning with environmental conservation requirements.
Working PrincipleAir through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
