Lead Time:3-7 days
Model Number:
Compliance: CE Certified
Minimum Order Quantity: 1set
Capacity: ml
Warranty: 1 year
Overview
Product Description

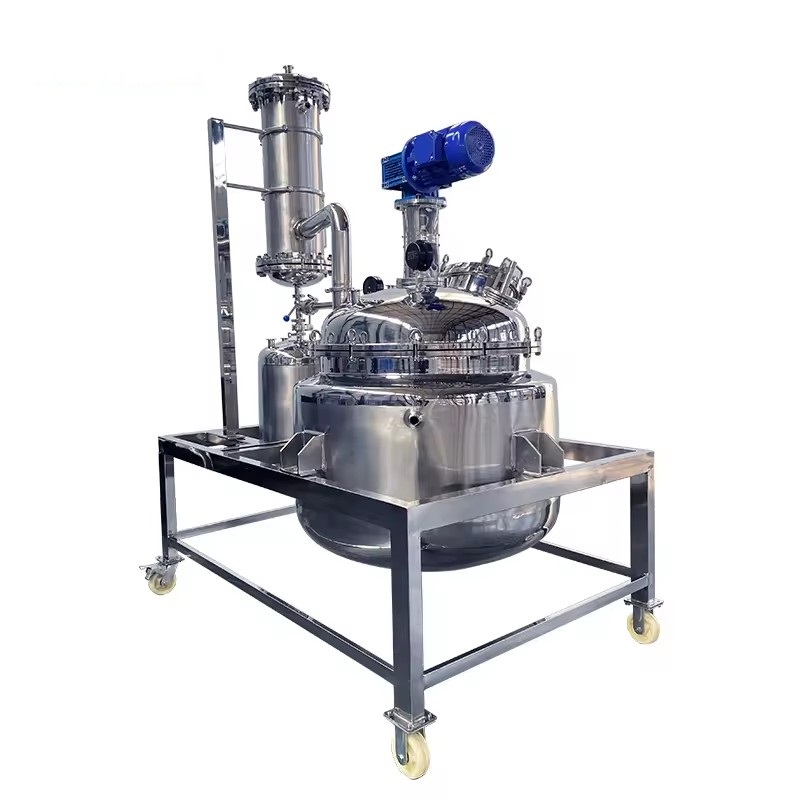

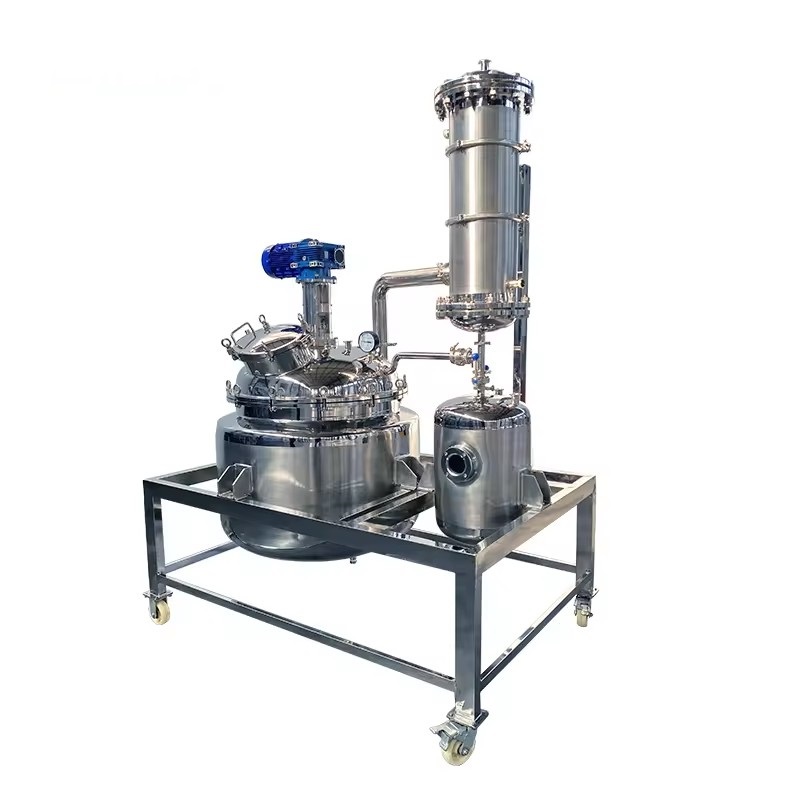

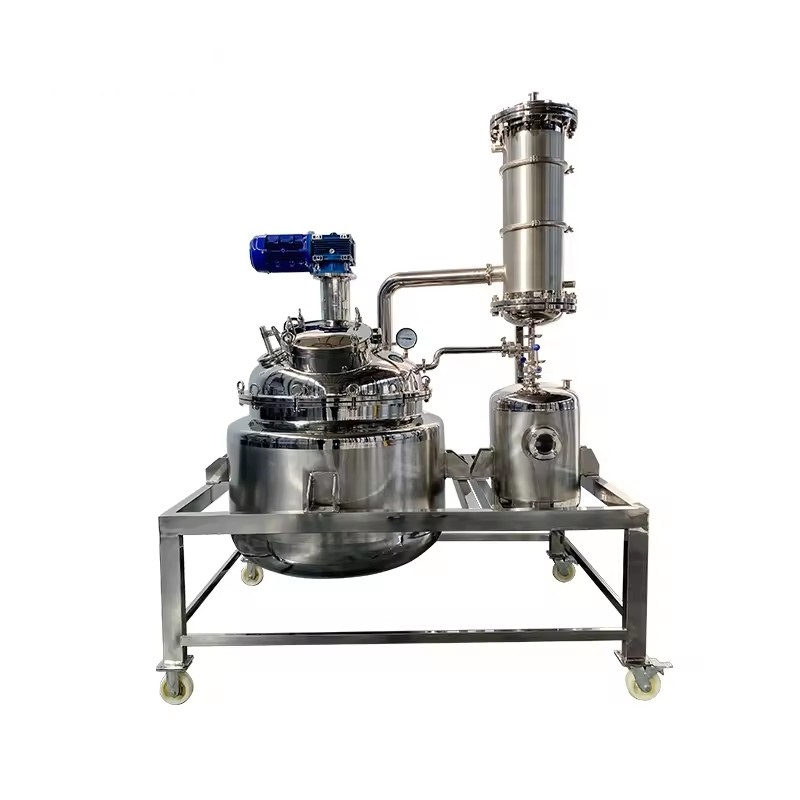

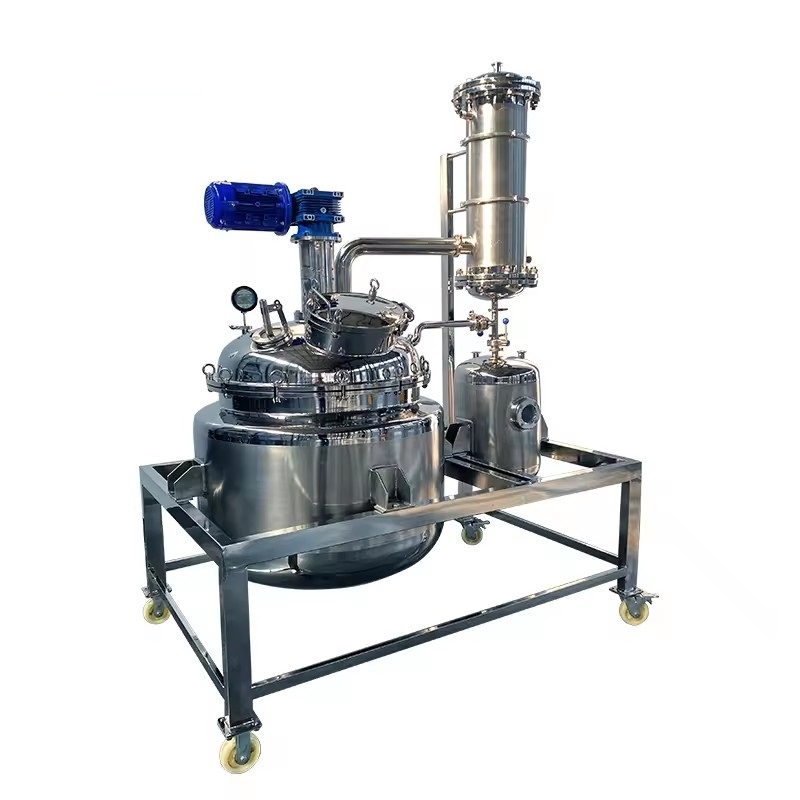

According to different materials, decarboxylation reactor is divided into glass decarboxylation reactor and stainless steel decarboxylation reactor.
The role of decarboxylation reactor: It can be used to recover the residual ethanol in the extraction process. A decarboxylation process can be carried out to convert, while preheating the raw materials for the next distillation process.

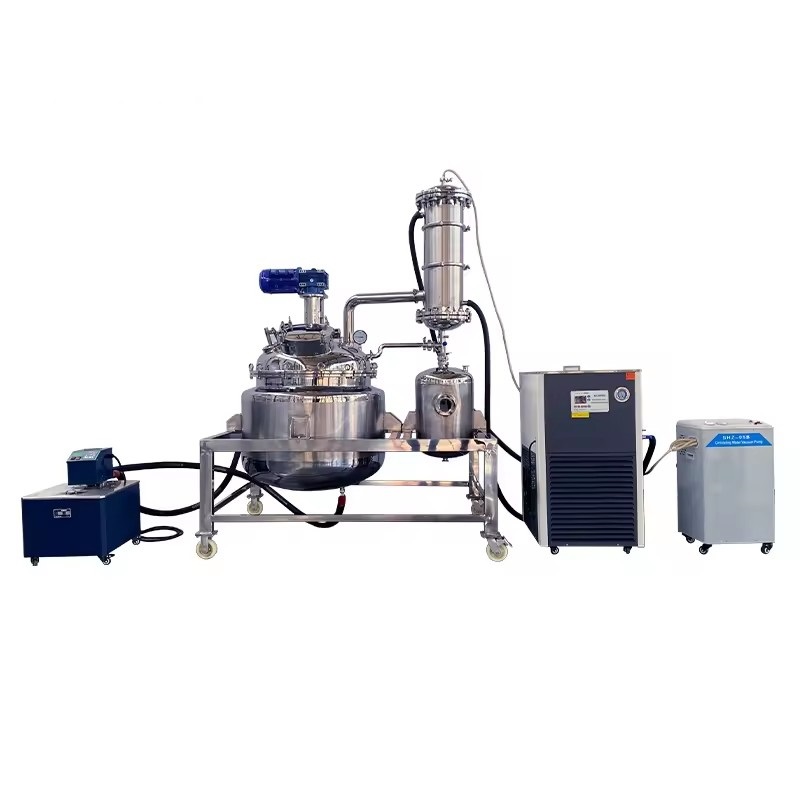

Components of decarboxylation reactor: It consists of reactor kettle body, condenser, collection tank, stirring motor, controller and so on.
Decarboxylation reactor function: vacuum, even stirring, even heating, condensation recovery, condensation reflux and so on.
Product Display
Function:
During the extraction process:
1. Can be used to recover residual ethanol;
2. Decarboxylation process can be carried out to convert.
3. Preheat the raw materials for the next distillation process.
Product Parameters
| Product Name | Stainless Steel Decarboxylation Reactor | |||
| Product Model | SDS-50 | SDS-100 | SDS-200 | SDS-300 |
| Reactor Material | SUS304 | |||
| Frame Material | SUS304 | |||
| Pipe Fitting Material | SUS304 | |||
| Reactor Volume | 50L | 100L | 200L | 300L |
| Collection Tank Volume | 20L | 30L | 50L | 80L |
| Interlayer | with 50mm heat insulation | |||
| Mezzanine Import and Export | 3/4" | 3/4" | 1" | 1" |
| Condenser | 0.5m2 | 1m2 | 2m2 | 2m2 |
| Condenser Inlet and Outlet | 3/4" | 3/4" | 3/4" | 3/4" |
| The Distance from the Discharge Port to the Ground | 350mm | |||
| Reaction Temperature of Kettle Body | -80~250℃ | |||
| Ultimate Vacuum | -0.098Mpa | |||
| Stirring Speed | Frequency 0-120rpm | |||
| Stirring Power | 0.5kw | 0.75kw | 1.1kw | 1.5kw |
| Voltage /Frequency(V/Hz) | 220V/60Hz | |||
Product Details
Reactor Body:The Reactor body is separated from the heating equipment, more convenient to use.
High efficiency Condenser:The internally installed cooling system can achieve rapid cooling.
Vacuum gauge:Equipped with a vacuum gauge, which is more convenient.
Application Field
It is suitable for stirring reactions of flammable, explosive, highly toxic, valuable mediums and other chemical mediums with strong penetrability. It is the ideal leak-free reaction equipment for sulfurization, fluorination, hydrogenation, oxidation and other reactions in etroleum, chemical, organic synthesis, polymeric material polymerization, food and other processes.
