Lead Time:3-7days
Model Number:2XZ Series
Minimum Order Quantity: 1
Operation method:
Warranty: 1 year
Overview

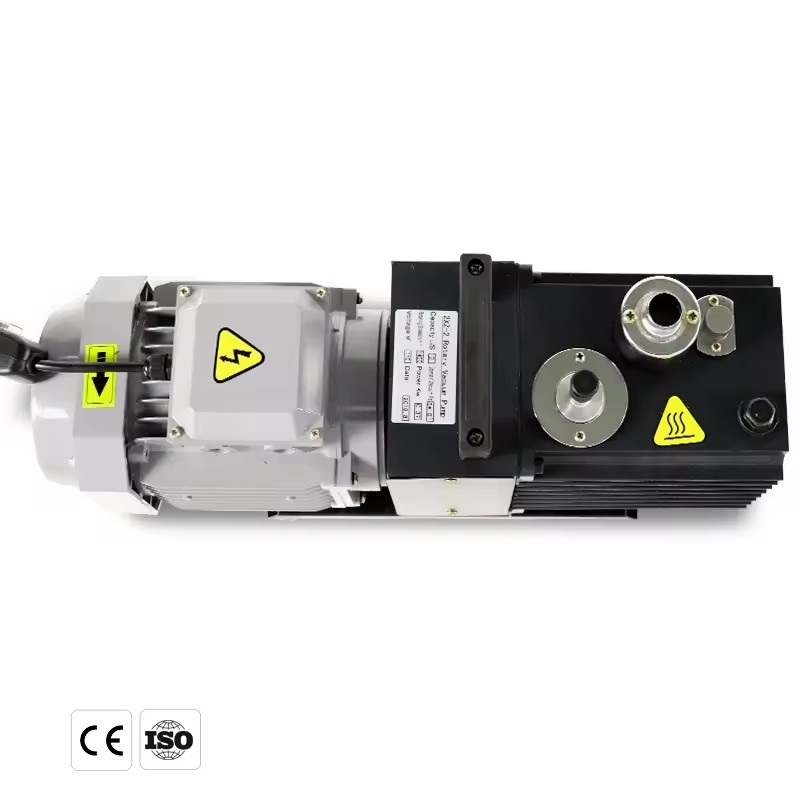

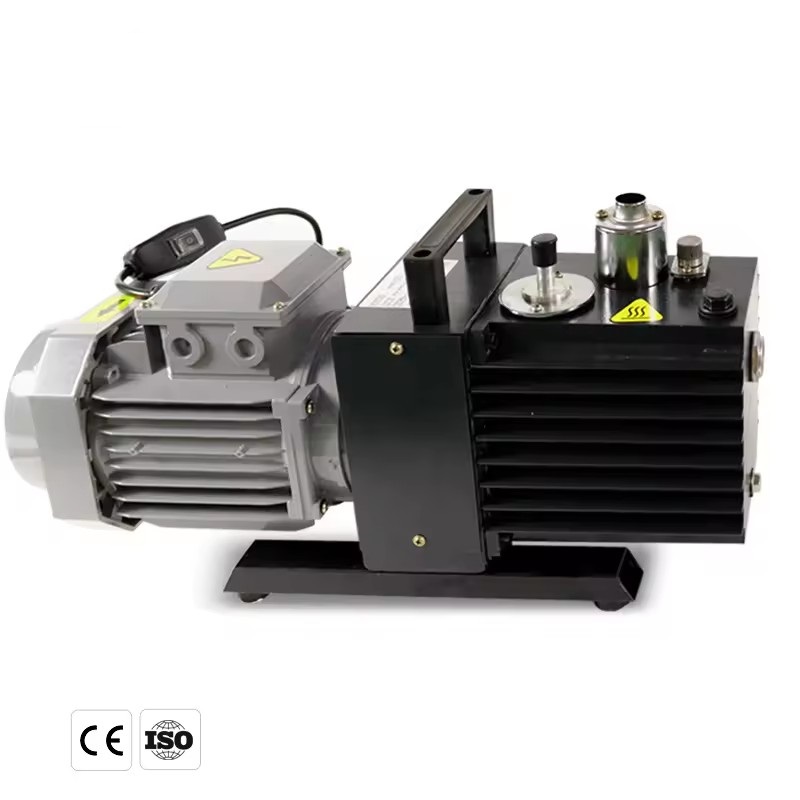

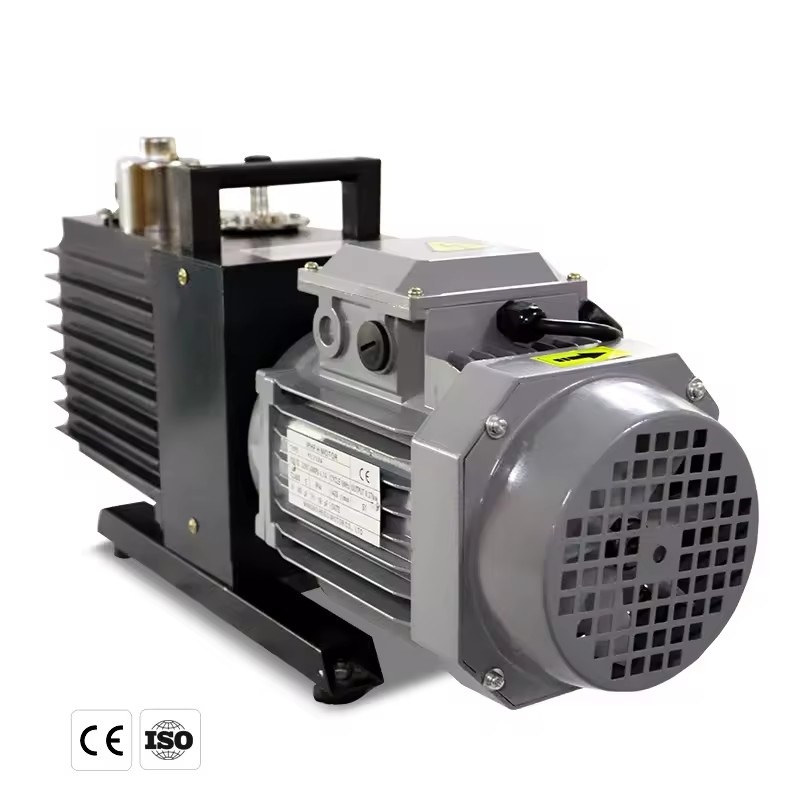

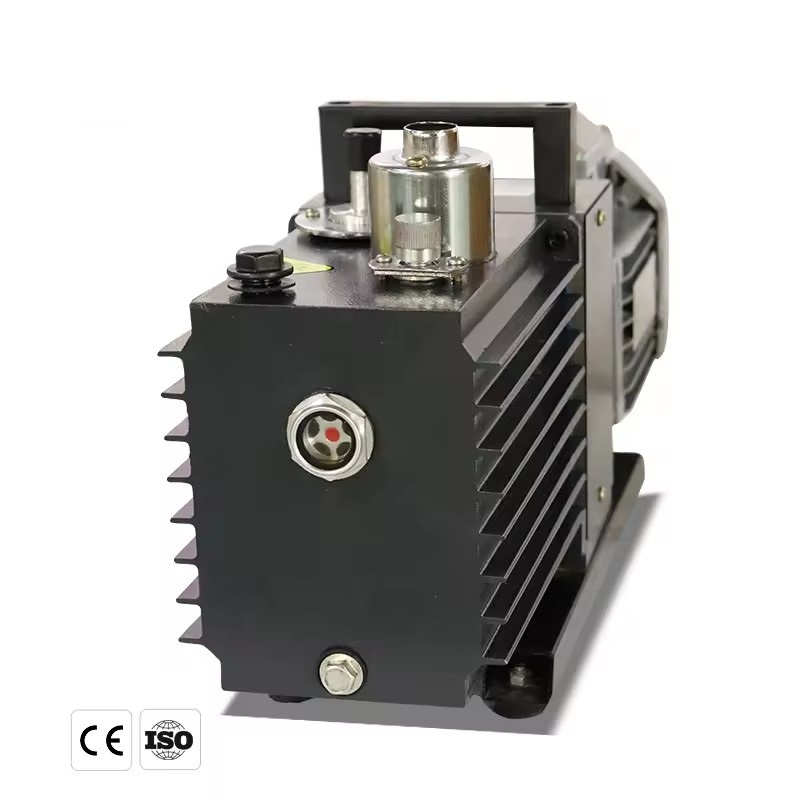

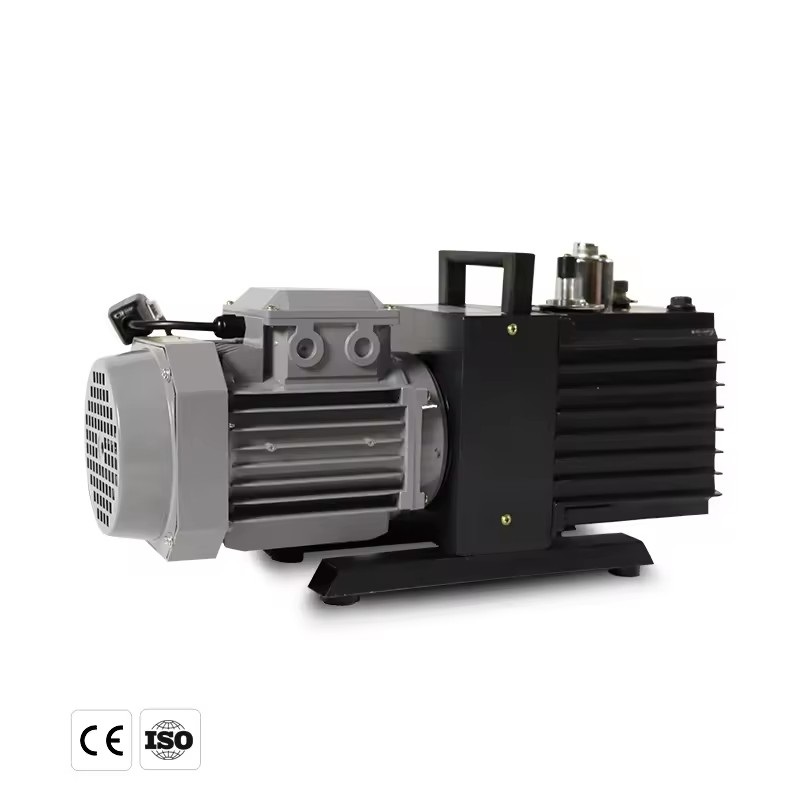

2XZ Series Rotary Vane Vacuum pump
Detailed description:
2XZ series Rotary vane type vacuum pump can be used independently ,which also can be as Booster pump , Diffusion pump ,Molecular pump and Titanium Pump's pre-pump .Also used as electronic devices produce ,vacuum drying ,filtration ,welding ,metal smelting etc .
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | |
| Exhausting speed(L/S) | 0.5 | 1 | 2 | 4 | |
| Ultimate vacuum(Pa) | gas ballast off | 6*10-2 | |||
| gas ballast on | 1.33 | ||||
| Rotary speed (rpm) | 1400 | ||||
| Working voltage(V) | 220 | 220/380 | 220/380 | 220/380 | |
| Motor power(Kw) | 0.18 | 0.25 | 0.37 | 0.55 | |
| Inlet diameter(mm)can be customized | Φ13 | Φ13 | Φ19 | Φ19 | |
| Oil capacity(L) | 0.42 | 0.4 | 0.48 | 0.55 | |
| Pump oil temp rise(℃) | ≤40 | ||||
| Dimensions(mm) | L(mm) | 435 | 460 | 478 | 518 |
| W(mm) | 125 | 125 | 148 | 148 | |
| H(mm) | 256 | 256 | 277 | 277 | |
| Total weight(kg) | 13 | 14 | 20 | 22 | |
| Noise(DB) | ≤60 | ||||
| Vibration reference number(u) | ≤80 | ||||
Features:
1. The 2XZ series Rotary Vane Vacuum Pump belongs to two stage direct connection structure rotary vane vacuum
pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
Packaging & Shipping
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Our Services
Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
