Synceray Bench-Top Spray Dryer Manufacturing instant coffee egg powder fruit juice powder
Laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Product name: Fluid bed dryer granulator
Lead Time:3-7days
Model Number:FL3-FL-500
Minimum Order Quantity: 1
Dimension(L*W*H):2200*1780*2300mm
Weight: 850KG
Warranty: 1 year
Product Description
Product Application

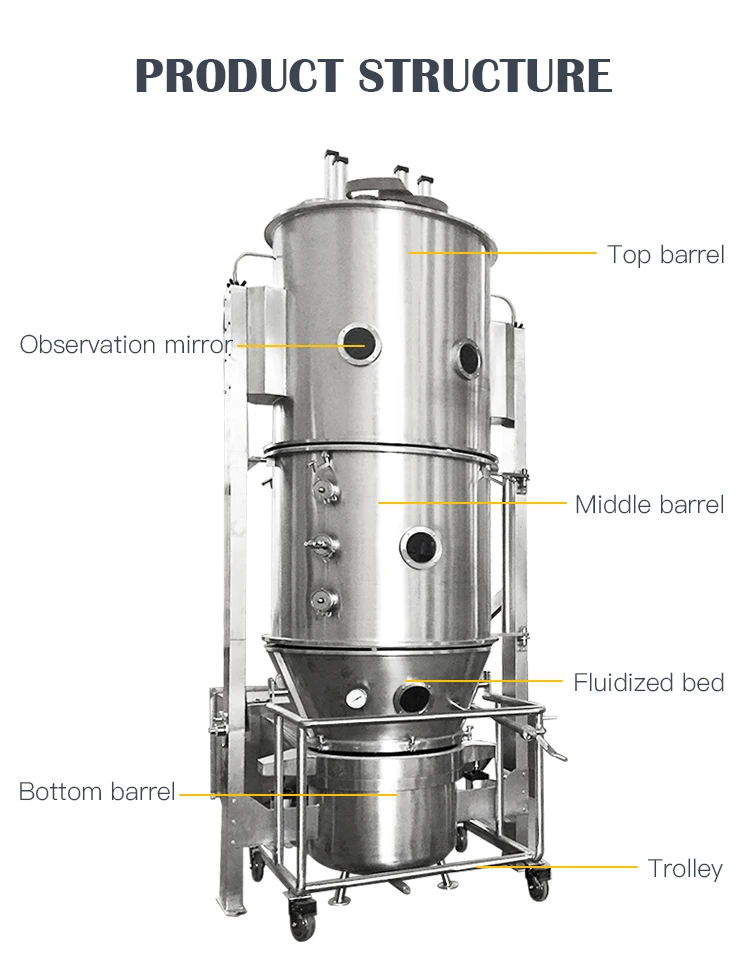

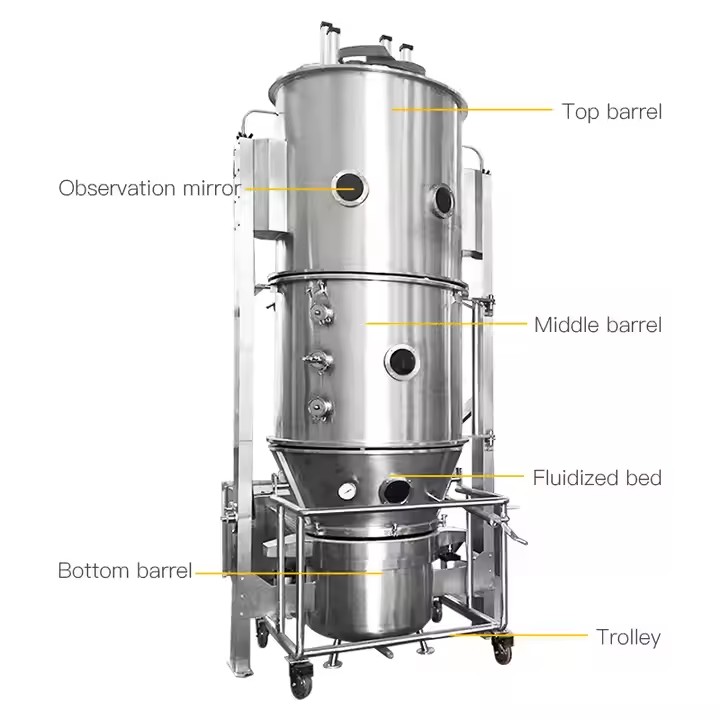

Product Structure
Product Parameters
| Fluid-bed dryer granulator | |||||||||
| Model | FL-3 | FL-5 | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 |
| Capacity(kg) | 1.5~4.5 | 4~6 | 10~20 | 15~45 | 30~90 | 80~160 | 100~300 | 150~450 | 250~750 |
| Volume(L) | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter(mm) | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Air Volume(m3/h) | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| Air pressure(mmH2O) | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 |
| Fan power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
| Heating method | electrical heating | steam heating | |||||||
| Power/Steam capacity | 12 kw | 15 kw | 21 kw | 36 kw | 141 kg/h | 211 kg/h | 282 kg/h | 366 kg/h | 451 kg/h |
| Compressed air consumption(kg/h) | 0.9 | 0.9 | 0.9 | 0.9 | 1 | 1 | 1.1 | 1.5 | 1.5 |
| Heating temperature(℃) | Rt~120 | ||||||||
Packaging & Shipping
Laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
The freeze dryer machine is a technical method in which the aqueous article is previously frozen and then the water is sublimated in a vacuum state to obtain a dry product.The freeze-dried article is easy to store for a long period of time, and the water can be restored to the pre-freeze form Keep the original biochemical characteristics.The pilot-scale vacuum freeze dryer realizes the automation of drying and sublimation. The machine has shelf heating and programmable functions, as well as memory freeze-drying curves, and comes with a U disk extraction function.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
Product Quality AssuranceThe rapid execution during the drying process reduces exposure time for heat-sensitive substances, aiding in maintaining product quality and the integrity of active ingredients.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,

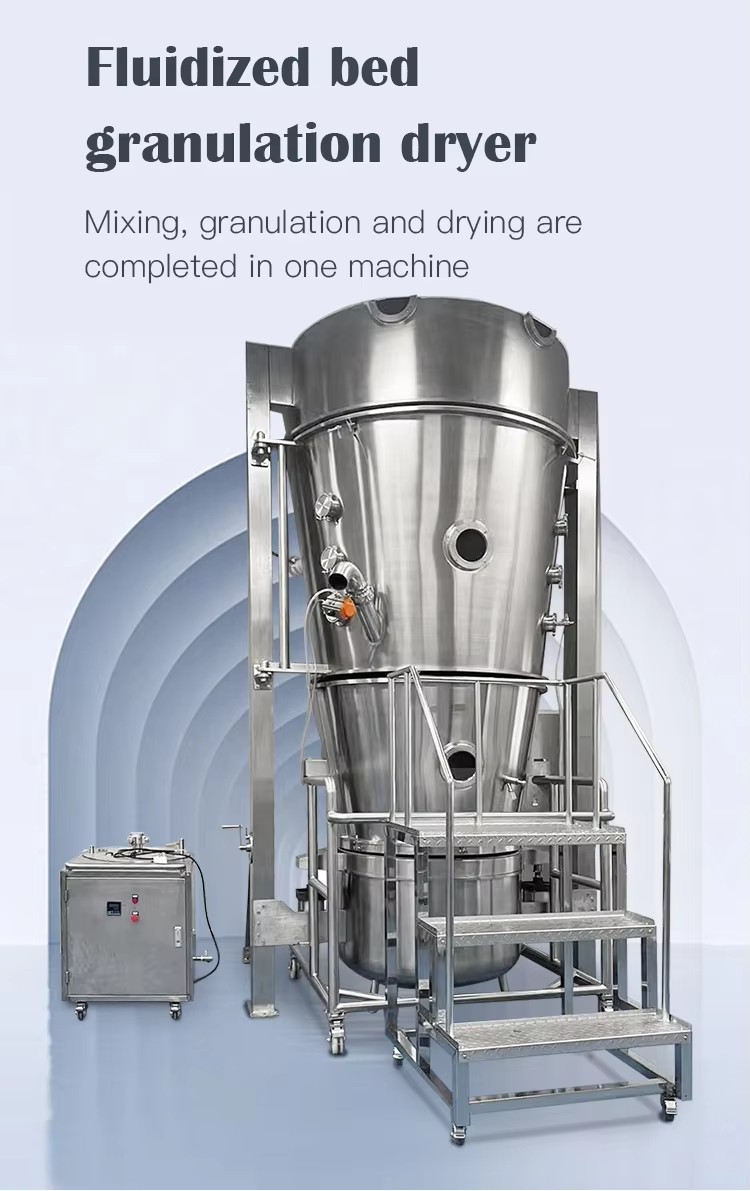

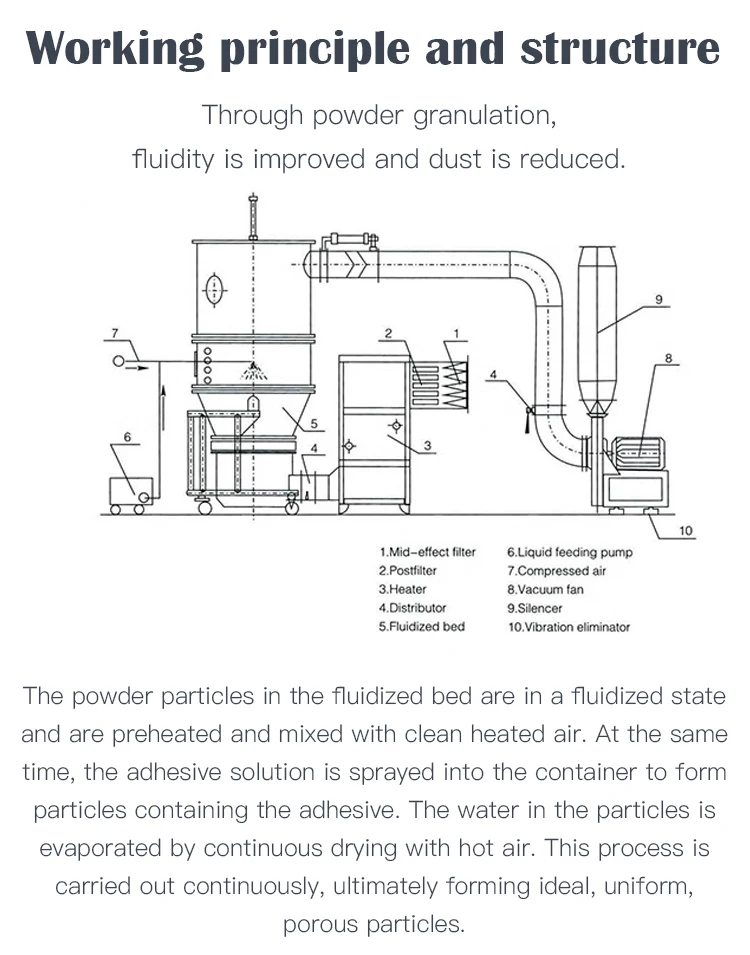

Fluidized bed granulation dryer Mixing, granulation and drying are completed in one machine.The powder particles in the fluidized bed are in a fluidized stateand are preheated and mixed with clean heated air. At the same time, the adhesive solution is sprayed into the container to form particles containing the adhesive. The water in the particles is evaporated by continuous drying with hot air. This process is carried out continuously, ultimately forming ideal, uniform,porous particles.
Fluidized bed granulation dryer Mixing, granulation and drying are completed in one machine.The powder particles in the fluidized bed are in a fluidized state and are preheated and mixed with clean heated air. At the sametime, the adhesive solution is sprayed into the container to form particles containing the adhesive. The water in the particles is evaporated by continuous drying with hot air. This process is carried out continuously, ultimately forming ideal, uniform,porous particles.
Vacuum drying oven is widely applied in research and application fields such as biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, environmental protection and so on, for drying, baking powder and all kinds of glass containers disinfection and sterilization. Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects processing fast and efficient drying treatment.
Home Freeze DryerEase of Use: User-friendly design for hassle-free operation at home.Food Preservation: Retains nutrition and flavor, extending shelf life.Versatility: Processes various foods like fruits, veggies, meats, providing options.Space-Saving: Compact design for easy storage.Convenient Storage: Food doesn’t require refrigeration post-drying.Wide Application: Ideal for outdoor use, emergencies, homemade products.Quality Maintenance: Maintains food quality even after rehydration.
Experimental vacuum freeze dryers are widely used in medicine, pharmaceutical, biological research, chemical and food fields. Freeze-dried items are easy to store for a long time, and can be restored to the state before freeze-dried and maintain the original biochemical properties after adding water. It is suitable for laboratory use and can meet the requirements of routine freeze-drying in most laboratories.
