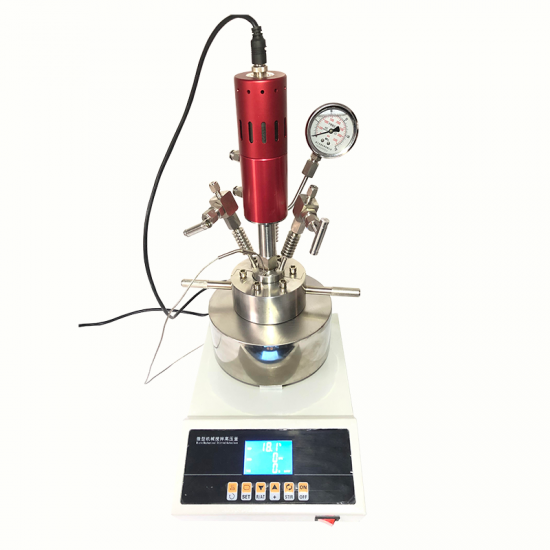

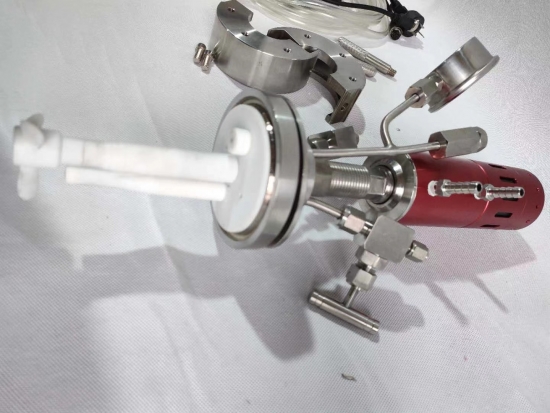

Lab Small High Pressure Parallel Synthesizer Polymerization Reactor Autoclave

Lead Time:3-5 days

Model Number: SYN-HP-10

Compliance: CE Certified

Minimum Order Quantity: 1SET

Capacity: 10-500ml

Warranty: 1 year

  • Product Details


· PRODUCT DETAILS

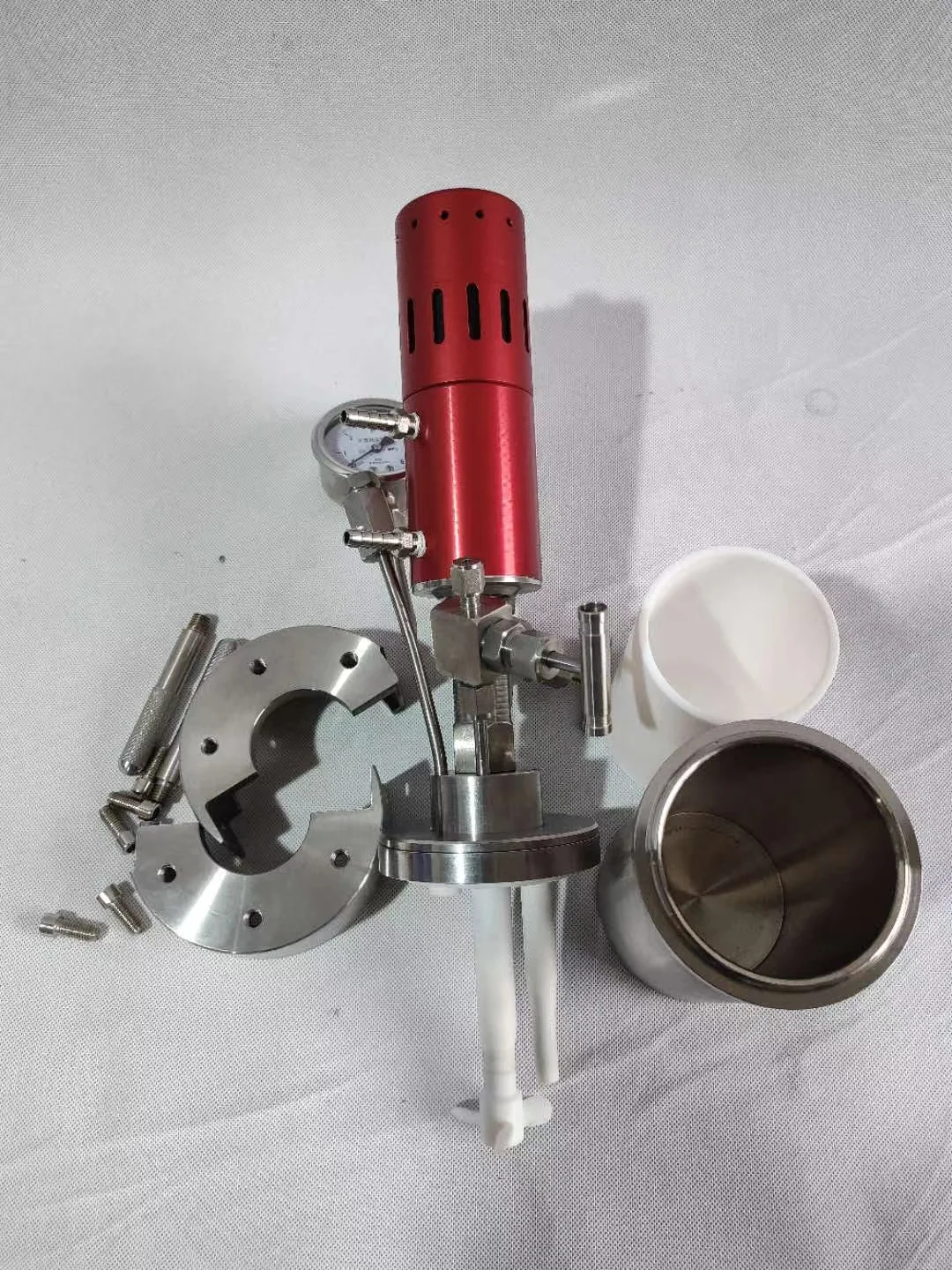

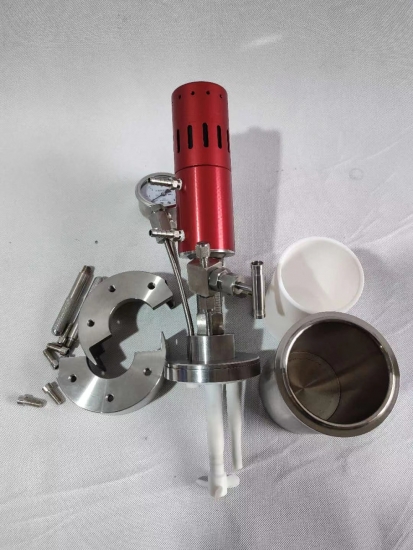

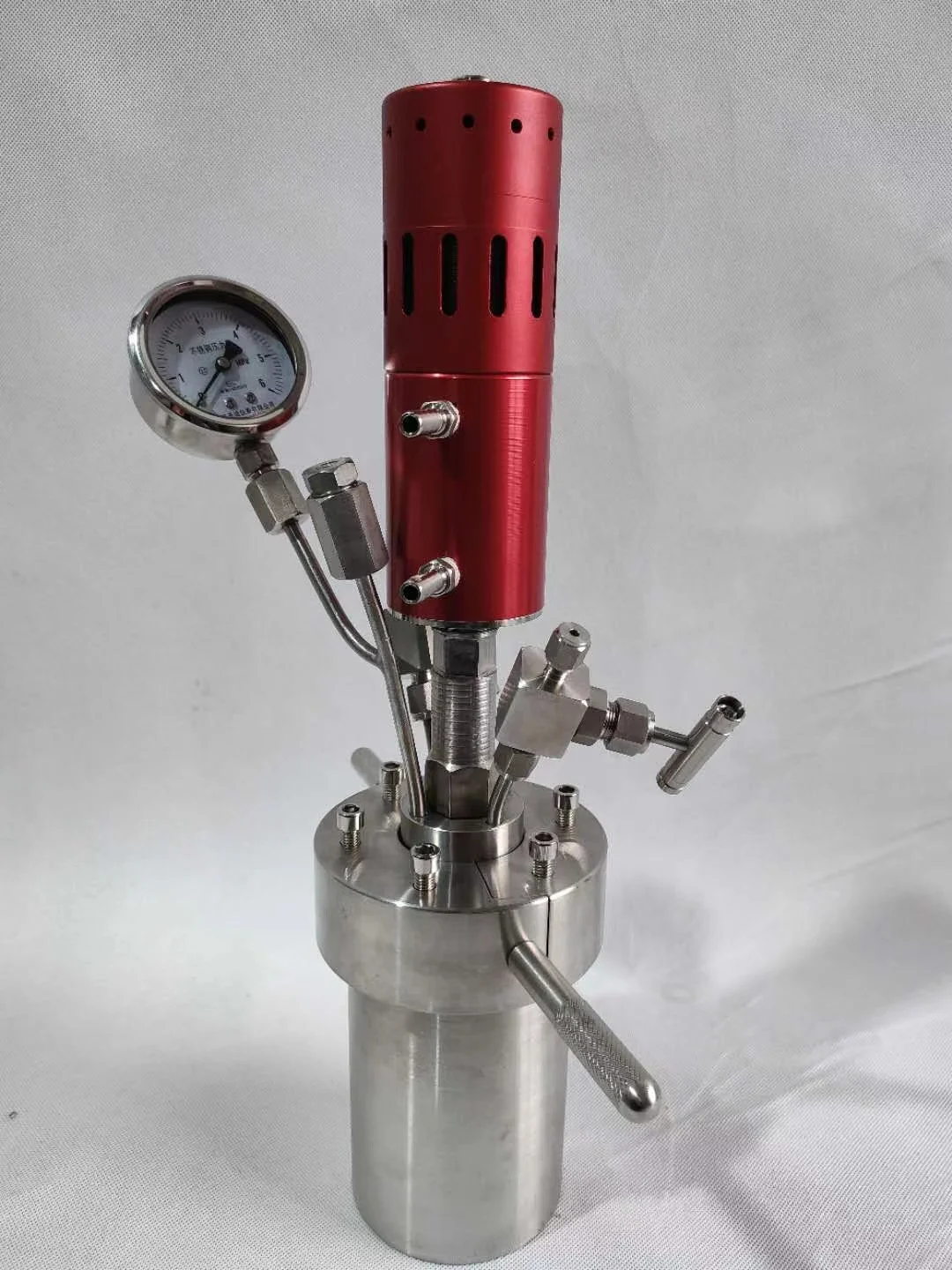

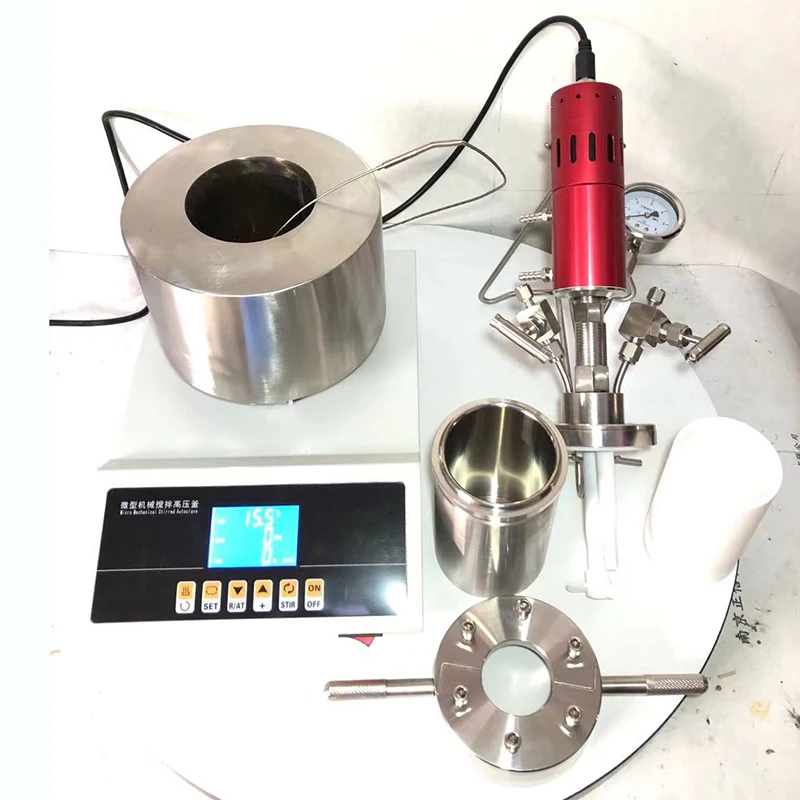

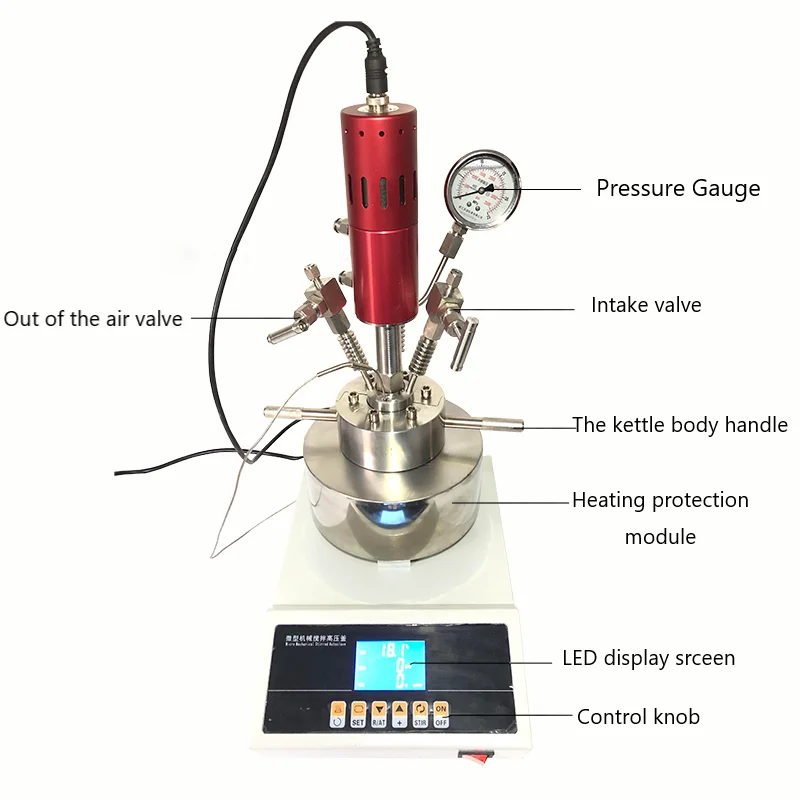

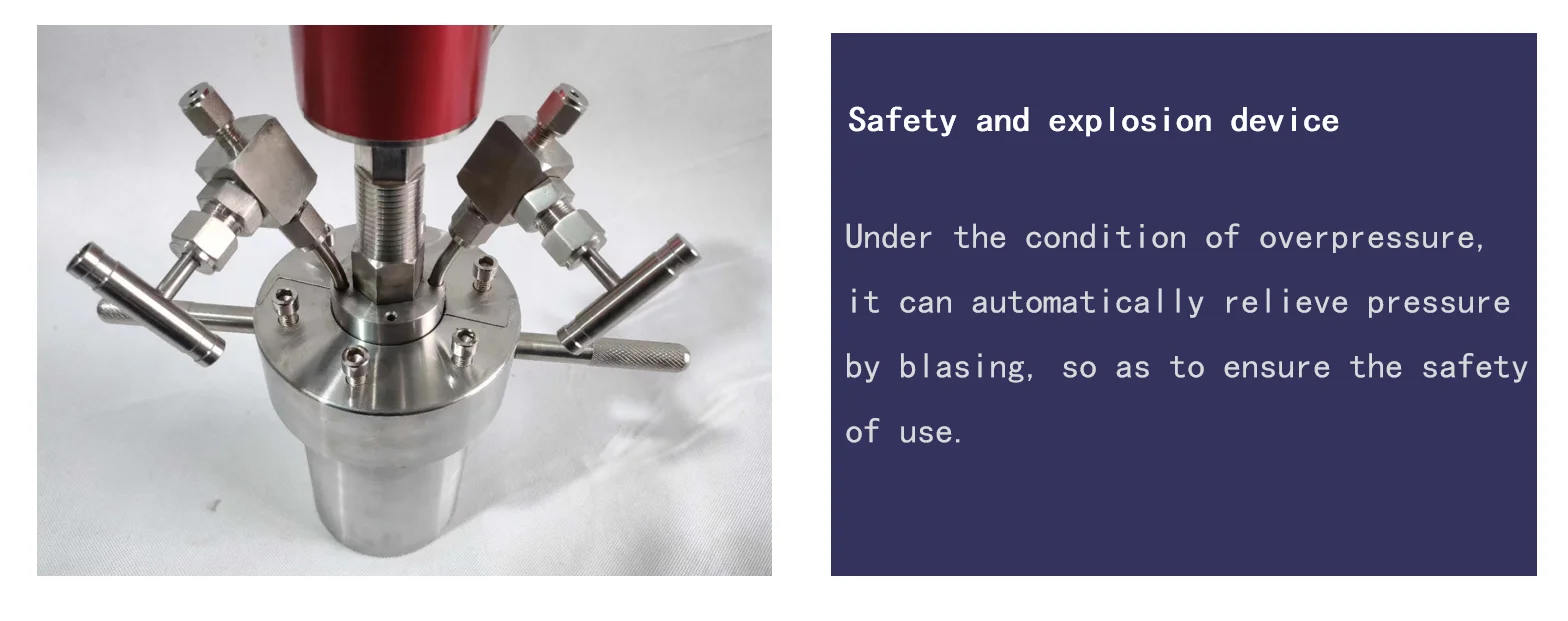

The stainless steel micro-reactor is small in size, simple and reliable in structure, temperature setting and digital display. The speed setting is digital. Economical, durable, complete accessories, standard micro DC motor, pressure gauge, explosion-proof device, intake valve, air outlet valve The temperature probe can easily realize the micro reaction test. The kettle body and heater can be completely separated. Greatly facilitates the disassembly of the reactor and improves work efficiency.
1, Static sealing structure
2, The mixer bath electrical machinery transmission uses the magnetic force couple connection.
3, No-touch passing moment, solving the stirred leak problem
4, Medium and the stirring member is in sealing state to work.

This product suitable for all kinds of inflammable, explosive, precious liquids and other chemical medium mixing reaction, strong penetration is oil. Chemical. Organic synthesis, polymer polymerization. Food technology in vulcanization. Fluoride. Oxidation until the ideal reaction equipment without leakage.


Specification

Model

OLT-HP-10

OLT-HP-25

OLT-HP-50

OLT-HP-100

OLT-HP-250

OLT-HP-500

volume(ml)

10

25

50

100

250

500

Service temperature(℃)

RT-350℃,Higher temperatures can be customized according to customer requirements

Use pressure(Mpa)

-0.1-10 Standard 10Mpa, customized according to customer requirements

heating power(w)

600

600

1000

1000

1500

1500

control mode

PID artificial intelligence adjustment, LCD digital display

Mixing form

Magnetic stirring

Mixing power(w)

80

Stirring speed(rpm)

0-1500

Positive and reverse regulation

Positive inversion

Temperature setting

Self setting function of temperature

safety protection

Set upper temperature limit, over temperature alarm, self power-off protection

Timing function

Working time and holding time can be set regularly

Timing function supply voltage

AC 108V-240V 50Hz




Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
