Lead Time:3-7days
Model Number: SYN-SD8000ST
Minimum Order Quantity: 1
Operation method: PLC
Screen: Touch Screen
Capacity: 2L
Warranty: 1 year
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable extracts, pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Model | SYN-2L |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30C -280C |
Temperature range of outlet air | 40C -120C |
Precision of temperature | ± 1 C |
dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | 2 liquid nozzles with standard 1.0mm jet Options of 0.5/0.7/1.5/2.0/2.5mm |
Spray direction | Downwards co-current |
Power | 3.5KW 108V-240V |
Dimensions | 650*500*1550 ( mm ) L * W* H |

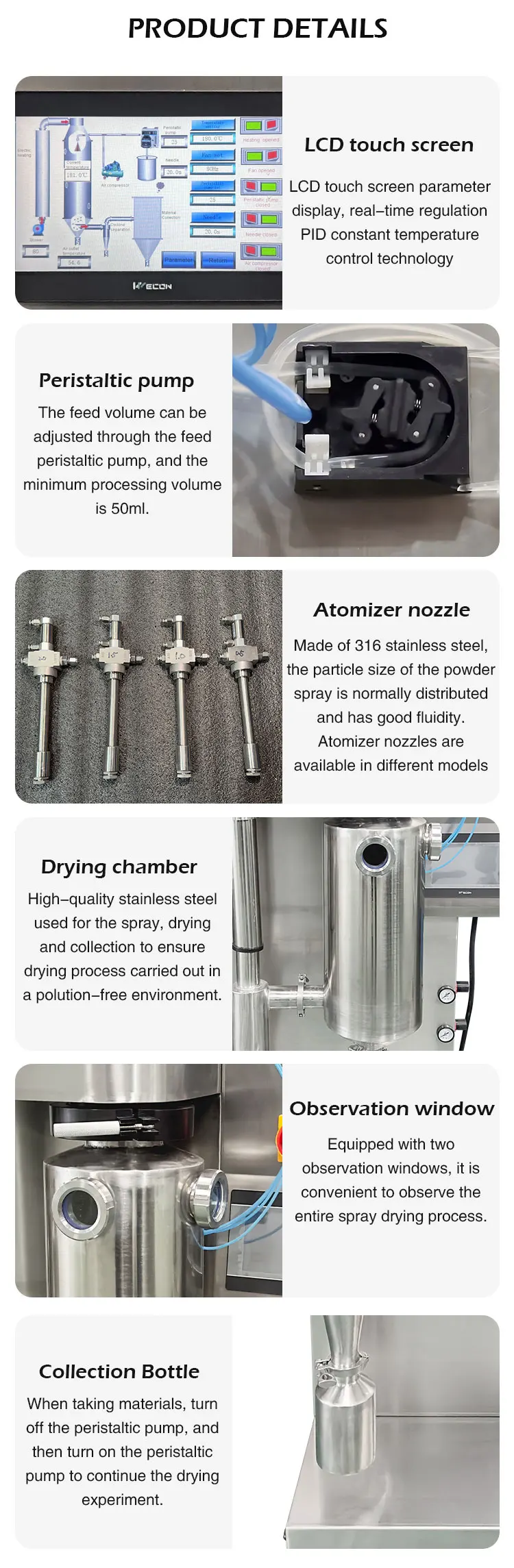

Main Features of the Dual-Stage Recovery Small Spray Dryer:
● Dual-stage cyclone separation recovery system significantly improves product recovery rate.
● High-efficiency spray nozzle, precision-made by Hefan.

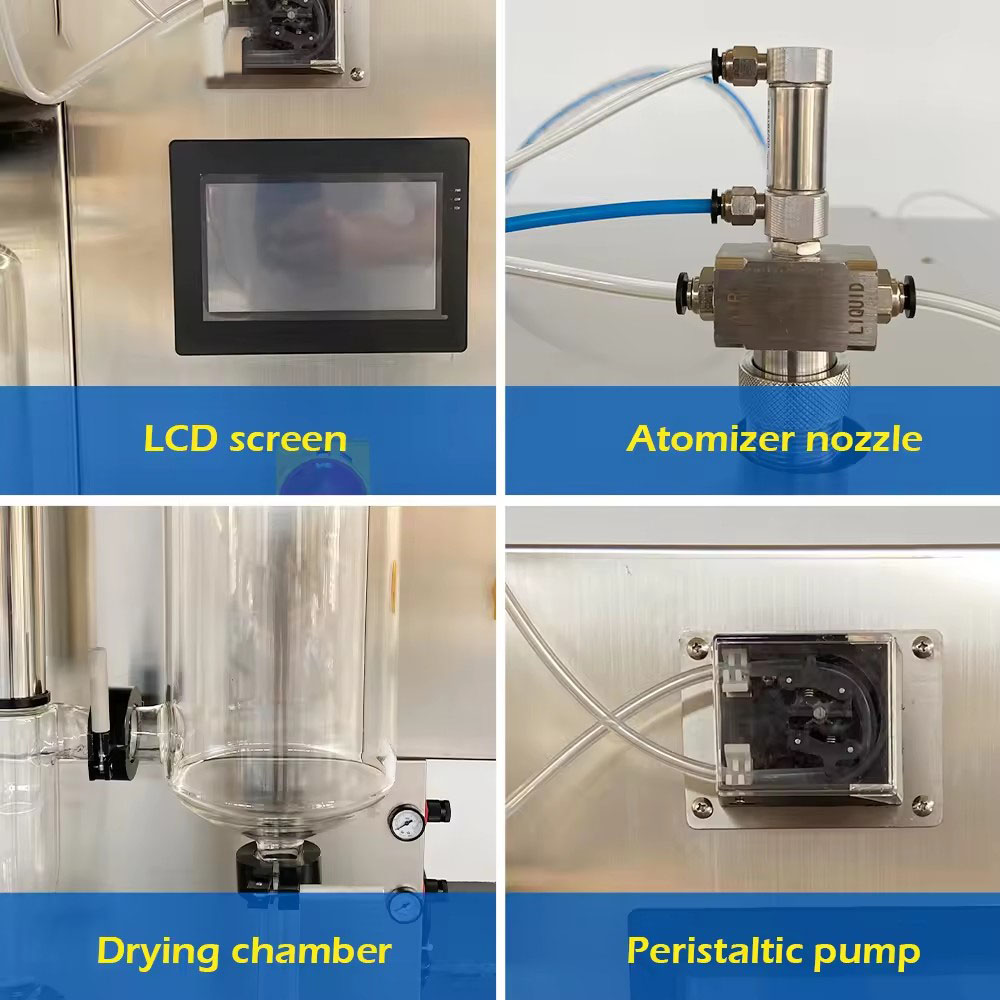

● Seven-inch color large touch screen operation, combining automatic and manual control, with Chinese and English interfaces, and parameters displayed on LCD.
● Real-time PID temperature control technology for accurate temperature control, with heating and temperature control accuracy of ±1℃.
● Spray, drying, and collection units are made of transparent, high-quality, heat-resistant boron silicate glass, providing visibility throughout the spray drying process.
● Two-fluid spray atomization structure, precision-manufactured from 316 stainless steel. The particle size distribution of the spray powder is normal, with good fluidity.
● Auto-clearing nozzle with adjustable frequency. When the nozzle is blocked, it automatically clears to ensure continuous experimentation.
● Feed rate adjustable via a feed peristaltic pump.
● Unique protection function: the heater cannot start if the fan is not operating.
● Built-in Taiwan Dolphin oil-free air compressor with noise level less than 50db.
● Equipped with an inlet filter to ensure sample purity.
● Dried product has uniform particle size, with over 95% of the dry powder falling within the same particle size range.
● Dual separators for sample separation and dual sample bottles for improved sample collection efficiency.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
The laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
Product Quality AssuranceThe rapid execution during the drying process reduces exposure time for heat-sensitive substances, aiding in maintaining product quality and the integrity of active ingredients.

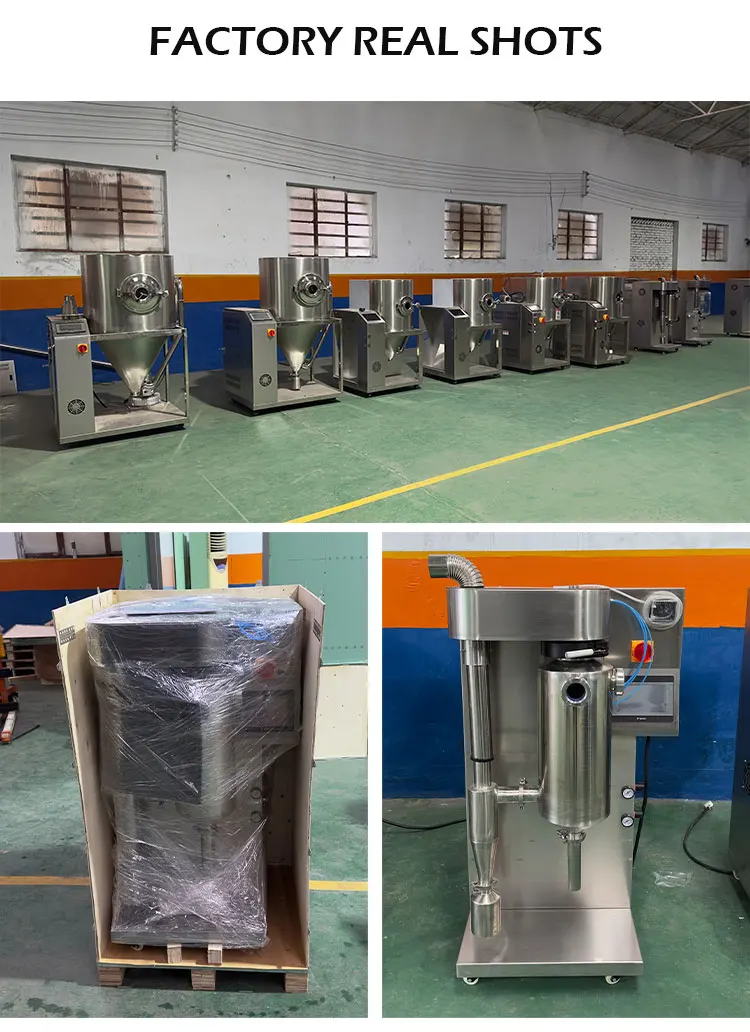

Packing and Shipping-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;-Both neutral and customized packaging can be available.-We
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
Wide Applicability Widely used in industries such as food, pharmaceuticals, and chemicals, it can process various liquid raw materials, including milk and medicinal liquids.
Energy Efficiency and Environmental FriendlinessIncorporating advanced energy recovery techniques minimizes energy waste, aligning with environmental conservation requirements.

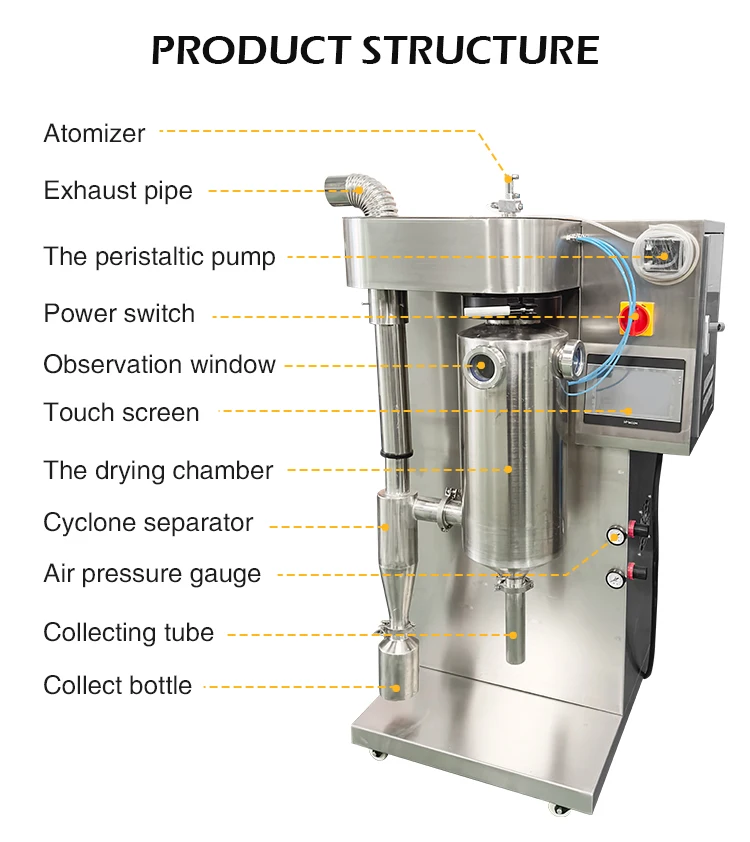

Working PrincipleAir through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Working PrincipleAir through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Working PrincipleAir through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
User-Friendly Operation The equipment features an intuitive control interface, facilitating easy operation and monitoring, thereby reducing operational complexity.
