Model Number:
Compliance:
CE Certified
Minimum Order Quantity:
1
Screen:
LCD
Voltage:
108V-240V 50/60HZ
Power:
1100w
Warranty:
1 year
Dimension(L*W*H):
mm
Weight:
kg
Packaging Details:
Export wooden package
Delivery Time:
6-8 day

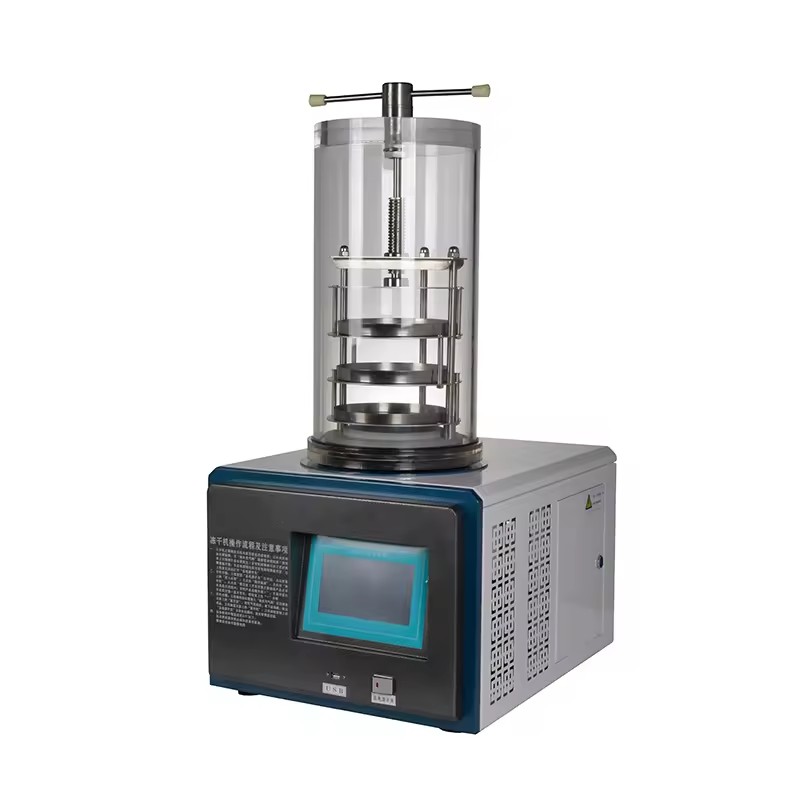

Experimental vacuum freeze dryer is widely used in biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.
Product Parameters
| Product Modle | ZLGJ-10(normal type) | ZLGJ-10(Multi-manifold type) | ZLGJ-10(Gland type) | ZLGJ-10(Manifold gland type) |
| Freeze-dried Area | 0.1 | 0.1 | 0.08 | 0.08 |
| Cold Trap Coil Temperature | ≤-55℃(no load),≤-80℃(no load) | |||
| Ultimate Vacuum | ≤5Pa(no load) | |||
| pumping Rate | 2L/S | |||
| Water Capture Capacity | 3-4kg/24h | |||
| Cooling Method | air cooling | |||
| Defrost Mode | natural frost | |||
| Host Weight | 48kg | |||
| Host Dimension | 520x600x400 | |||
| Total Power | 950W | |||
| Material Tray | 4pcs,Disc diameter: φ180mm, disc spacing: 70mm | 3pcs,Disc diameter: φ180mm, gap between glands: 70mm | ||
| Eggplant Flask | / | 8pcs,100ml,150ml,250ml,500ml two each | / | 8pcs,100ml,150ml,250ml,500ml two each |
| Vial | vialφ12:920;vialφ16:480; vialφ22:260; | vialφ12:560;vialφ16:285; vialφ22:165; | ||
| Working Ambient Temperature | 10℃~30℃ | |||
| Relative Humidity | ≤70% | |||
| Voltage | single phase 220V±10% 50HZ | |||
| Working Environment | The working environment should be free from conductive dust, explosive, corrosive gases and strong electromagnetic field interference | |||
| Transport Storage Ambient Temperature | 50℃~-40℃ | |||
Product Details
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
Compact lab testing equipment for startup R&D,It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
The laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
Laboratory spray dryer is widely used in the food, pharmaceutical, chemical, and biotechnology fields, serving as an efficient and versatile drying tool.
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herb, health care products, etc.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
The freeze dryer machine is a technical method in which the aqueous article is previously frozen and then the water is sublimated in a vacuum state to obtain a dry product.The freeze-dried article is easy to store for a long period of time, and the water can be restored to the pre-freeze form Keep the original biochemical characteristics.The pilot-scale vacuum freeze dryer realizes the automation of drying and sublimation. The machine has shelf heating and programmable functions, as well as memory freeze-drying curves, and comes with a U disk extraction function.
The freeze dryer machine is a technical method in which the aqueous article is previously frozen and then the water is sublimated in a vacuum state to obtain a dry product.The freeze-dried article is easy to store for a long period of time, and the water can be restored to the pre-freeze form Keep the original biochemical characteristics.The pilot-scale vacuum freeze dryer realizes the automation of drying and sublimation. The machine has shelf heating and programmable functions, as well as memory freeze-drying curves, and comes with a U disk extraction function.
The Synceray Pilot Scale Vacuum Freeze Dryer has changed the tedious operation of the traditional drying process, prevented the pollution of materials, and realized the automation of drying sublimation. The dryer has the function of shelf heating and programming, can remember the freeze-drying curve, Comes with USB flash drive output function, convenient for users to observe the freeze-drying process of materials.
Customized Particle SizePrecise control of the final powder’s particle size is achievable by adjusting operational parameters, meeting specific requirements for particle size in different products.
Product Quality AssuranceThe rapid execution during the drying process reduces exposure time for heat-sensitive substances, aiding in maintaining product quality and the integrity of active ingredients.
Packing and Shipping-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;-Both neutral and customized packaging can be available.-We
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes,
Energy Efficiency and Environmental FriendlinessIncorporating advanced energy recovery techniques minimizes energy waste, aligning with environmental conservation requirements.
